ADS114S06IRHBT - Texas Instruments

Description: 16-Bit, 4kSPS, 6-Ch Delta-Sigma ADC With PGA and Voltage Reference for Precision Sensor Measurement

Download ADS114S06IRHBT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

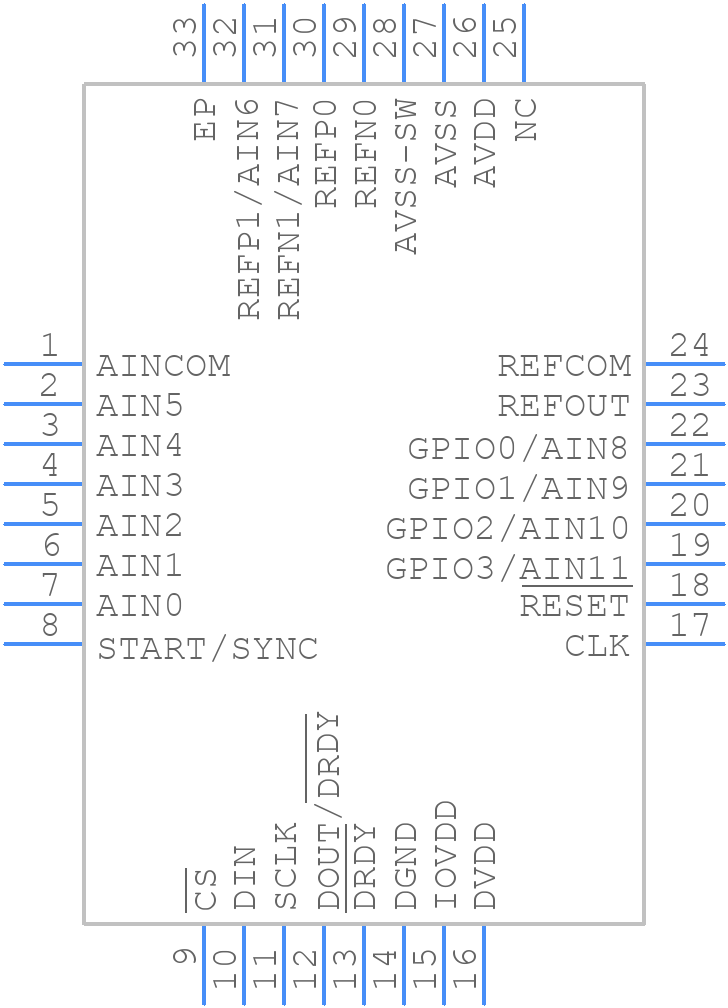

Symbol
ADS114S06IRHBT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADS114S06IRHBT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHB0032M
click to zoom
3D Models
ADS114S06IRHBT - Texas Instruments - 3D model - Quad Flat No-Lead - RHB0032M
click to zoom

ADS114S06IRHBT Details

  • Manufacturer Part Number:

    ADS114S06IRHBT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HVQCCN-32

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    2017-03-08

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    5.2 V

  • Analog Input Voltage-Min:

    -0.5 V

  • Conversion Time-Max:

    0.406 µs

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    6

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -50 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.004 MHz

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    1.8 mA

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

ADS114S06IRHBT Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep analog and digital signals separate. Use short, direct traces for analog signals, and avoid crossing digital signals over analog signals. Also, decouple the power supply with a 10uF capacitor and a 100nF capacitor in parallel.
  • Use the ADS114S06's built-in calibration modes to optimize gain and offset. Perform a system calibration by shorting the input pins together and adjusting the gain and offset registers to achieve the desired output code. You can also use the device's internal calibration modes to adjust the gain and offset.
  • Power up the device in the following sequence: AVDD, DVDD, and then CLK. Ensure that the power supplies are stable and within the recommended operating range before applying the clock signal.
  • The ADS114S06IRHBT has an internal clock that can be synchronized with an external clock signal. Use the CLK pin to input an external clock signal, and configure the device's clock mode register to synchronize the internal clock with the external clock.
  • The recommended filter settings depend on the specific application and signal frequency. As a general guideline, use a low-pass filter with a cutoff frequency of 1/5 to 1/10 of the sampling frequency to reduce noise and aliasing. You can also use the device's built-in digital filters to further reduce noise and improve signal quality.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADS114S06IRHBT Overview

Use the download button to access the ADS114S06IRHBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS11, or try a keyword search, such as Analog to Digital Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
