Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep analog and digital signals separate. Use short, direct traces for analog signals, and avoid crossing digital signals over analog signals. Also, decouple the AVDD and DVDD pins with 0.1uF capacitors.
Use the ADS114S08's built-in calibration modes to optimize gain and offset. The device has a self-calibration mode that can be triggered through the SPI interface. Additionally, you can use the offset calibration register to adjust the offset voltage. Consult the datasheet and application notes for more information.
Power up the device in the following sequence: AVDD, DVDD, and then the digital interface (e.g., SPI or I2C). Ensure that the power supplies are stable and within the recommended voltage range before starting the conversion process.
The ADS114S08IRHBR has a power-down mode that can be controlled through the SPI interface. When in power-down mode, the device consumes minimal power, but the conversion process is halted. Ensure that your system design can handle the power-down mode and resume conversion seamlessly when the device is powered back up.
The ADS114S08IRHBR is rated for operation from -40°C to 125°C. Ensure good thermal conductivity between the device and the PCB, and consider using thermal vias or heat sinks if your application requires high-temperature operation. Consult the datasheet for thermal resistance and power dissipation information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS114S08IRHBR Overview

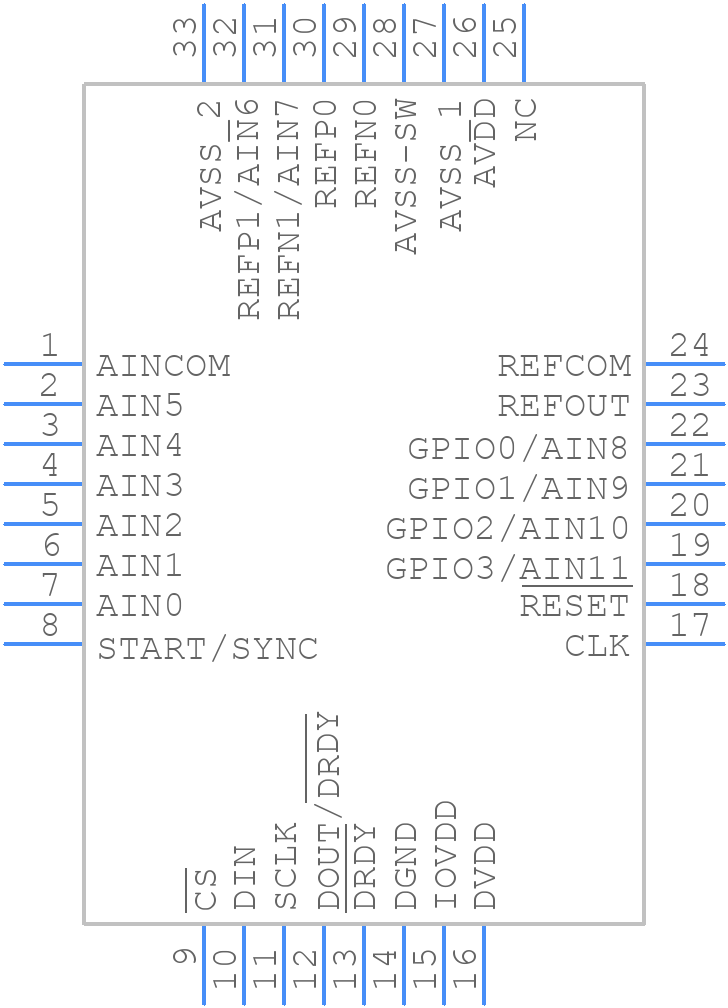

Use the download button to access the ADS114S08IRHBR schematic symbol, PCB footprint, and 3D model.
