ADS114S08IRHBT - Texas Instruments

Description: 16-Bit, 4kSPS, 12-Ch Delta-Sigma ADC With PGA and Voltage Reference for Precision Sensor Measurement

Download ADS114S08IRHBT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

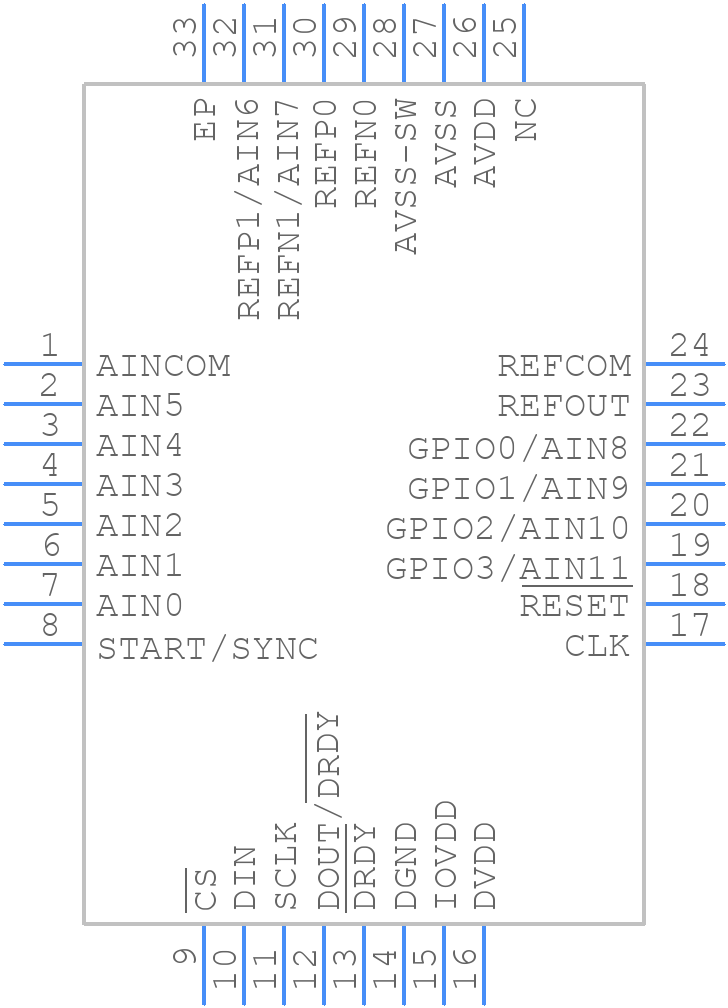

Symbol
ADS114S08IRHBT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADS114S08IRHBT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHB0032M
click to zoom
3D Models
ADS114S08IRHBT - Texas Instruments - 3D model - Quad Flat No-Lead - RHB0032M
click to zoom

ADS114S08IRHBT Details

  • Manufacturer Part Number:

    ADS114S08IRHBT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    2017-03-08

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    5.25 V

  • Analog Input Voltage-Min:

    -0.5 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    12

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -50 °C

  • Output Bit Code:

    2'S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.004 MHz

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    0.28 mA

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

ADS114S08IRHBT Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep analog and digital signals separate. Use short, direct traces for analog signals, and avoid crossing digital signals over analog signals. Also, decouple the AVDD and DVDD pins with 0.1uF capacitors.
  • Use the ADS114S08's built-in calibration modes to optimize gain and offset. The device has a self-calibration mode that can be triggered through the SPI interface. Additionally, you can use the offset calibration register to adjust the offset voltage to your specific application's requirements.
  • Power up the device in the following sequence: AVDD, DVDD, and then the analog input voltage. Ensure that the power supplies are stable and within the recommended operating range before applying the analog input voltage.
  • Use the Power-Down (PD) pin to put the device in power-down mode. In this mode, the device consumes minimal power. You can also use the SPI interface to put the device in standby mode, which reduces power consumption while still allowing the device to respond to SPI commands.
  • Use an anti-aliasing filter (AAF) with a cutoff frequency set to less than half the sampling frequency to minimize aliasing. A 2nd-order or 4th-order Butterworth filter is recommended. Additionally, use a low-pass filter to remove high-frequency noise from the analog input signal.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADS114S08IRHBT Overview

Use the download button to access the ADS114S08IRHBT schematic symbol, PCB footprint, and 3D model.
