Texas Instruments provides a recommended layout and routing guide in the ADS1192IPBSR Evaluation Module User's Guide (SLAU445). It's essential to follow this guide to ensure optimal performance and minimize noise.
To optimize the ADS1192IPBSR for low noise and high CMRR, ensure that the analog input signals are properly filtered, use a low-noise reference voltage, and maintain a clean and quiet power supply. Additionally, use a high-quality PCB layout with proper grounding and shielding.
The ADS1192IPBSR can achieve a maximum data rate of 8 kSPS (kilosamples per second) in turbo mode. However, the actual data rate may be limited by the system's clock frequency, SPI interface, and other factors.
The ADS1192IPBSR requires a calibration process to ensure accurate measurements. This involves setting the gain and offset registers, as well as performing a system calibration using a known input signal. Refer to the ADS1192IPBSR datasheet and application notes for detailed calibration procedures.
The ADS1192IPBSR has a typical power consumption of 13.5 mW at 1 kSPS. To reduce power consumption, consider using the device's power-down modes, reducing the clock frequency, and optimizing the system's power supply. Additionally, use a low-power microcontroller and minimize the number of active components in the system.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1192IPBSR Overview

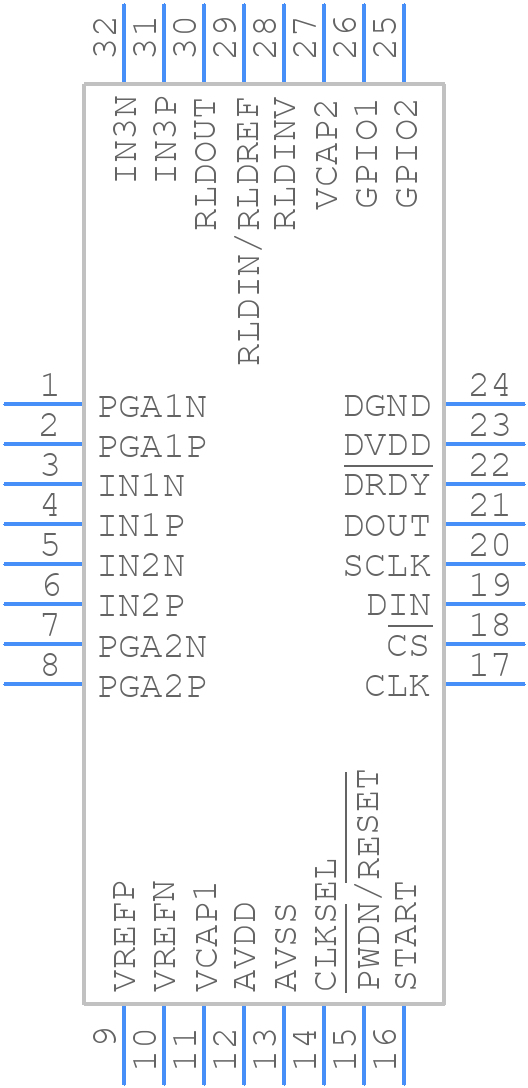

Use the download button to access the ADS1192IPBSR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS11,
or try a keyword search, such as Other Signal Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
