The ADS1209SPW requires careful PCB layout and routing to ensure optimal performance. TI recommends a 4-layer PCB with a solid ground plane, and to keep analog and digital signals separate. Additionally, the analog input traces should be routed close to the ADC pins, and the digital output traces should be routed away from the ADC pins.
To optimize the ADC's performance, consider the following: choose the correct gain setting, adjust the sampling rate, and select the appropriate clock source. Additionally, ensure proper filtering and shielding to minimize noise and interference. TI also provides an ADC performance calculator tool to help optimize the ADC's performance for specific applications.
The recommended power-up sequence for the ADS1209SPW is to first apply the analog power supply (AVDD), followed by the digital power supply (DVDD), and then the clock signal. This ensures that the ADC's internal biasing and references are properly established before the clock signal is applied.
To ensure accurate conversions, it's essential to handle the ADC's output data correctly. This includes using a suitable interface (e.g., SPI or I2C), ensuring proper data synchronization, and accounting for the ADC's latency and pipeline delay. Additionally, consider using the ADC's built-in error detection and correction features, such as the CRC and parity bits.
The ADS1209SPW has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking and thermal management. This includes using a heat sink, ensuring good airflow, and avoiding high ambient temperatures. TI also provides thermal design guidelines and thermal models to help with thermal management.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1209SPW Overview

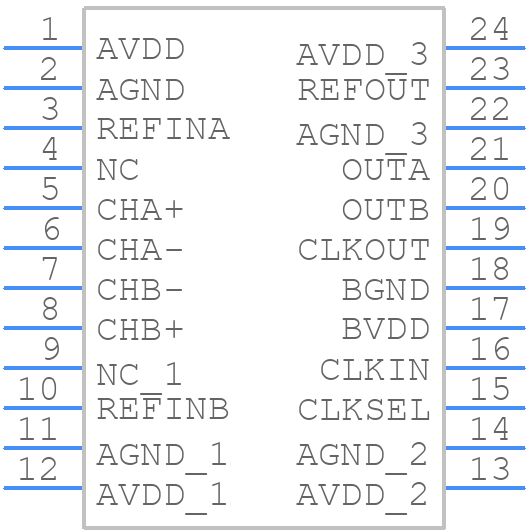

Use the download button to access the ADS1209SPW schematic symbol, PCB footprint, and 3D model.
