The ADS1210U/1K requires careful PCB layout and placement to minimize noise and ensure optimal performance. TI recommends placing the device close to the analog signal sources, using a solid ground plane, and keeping analog and digital traces separate. Additionally, decoupling capacitors should be placed close to the device's power pins.
The ADS1210U/1K requires gain and offset calibration for optimal performance. TI recommends using the device's built-in calibration modes and following the calibration procedure outlined in the datasheet. Additionally, users can use external calibration signals and adjust the gain and offset registers to optimize performance for their specific application.
The ADS1210U/1K requires a specific power-up sequence to ensure proper operation. TI recommends powering up the device in the following order: AVDD, DVDD, and then CLK. Additionally, the device should be powered up slowly (e.g., 10 ms) to prevent damage.
The ADS1210U/1K outputs digital data in a specific format that requires careful handling to ensure accurate conversion results. TI recommends using a FIFO or a dedicated ADC interface to handle the digital output data and ensure accurate conversion results. Additionally, users should ensure that the digital output data is properly synchronized with the device's clock signal.
The ADS1210U/1K is sensitive to temperature and requires careful thermal management to ensure reliable operation. TI recommends using a heat sink or thermal pad to dissipate heat, and ensuring that the device is operated within its specified temperature range (-40°C to 125°C). Additionally, users should ensure that the device is not exposed to extreme temperatures during storage or operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1210U/1K Overview

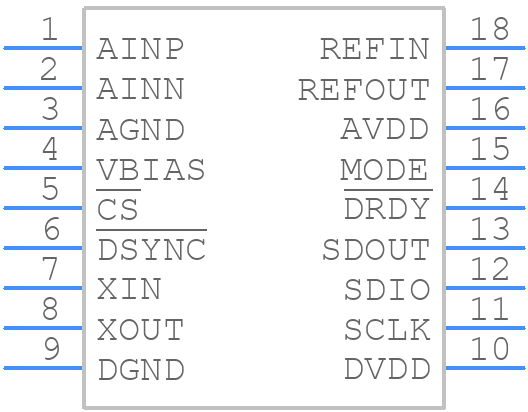

Use the download button to access the ADS1210U/1K schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
