The ADS1211E requires careful layout and placement to minimize noise and ensure accurate conversions. TI recommends placing the device close to the analog signal source, using a solid ground plane, and keeping analog and digital traces separate. Additionally, decoupling capacitors should be placed close to the device's power pins.
To optimize the ADS1211E's performance, consider the following: choose the correct gain setting, adjust the sampling rate, and select the appropriate input range. Additionally, ensure proper filtering and shielding to minimize noise and interference. TI provides application notes and evaluation modules to help with optimization.
The ADS1211E outputs 24-bit data, which can be processed using a microcontroller or FPGA. To handle the data, use a serial interface (SPI or I2C) to read the output, and consider using a FIFO or buffer to manage data transfer. Ensure proper synchronization and data formatting to avoid errors.
Calibration is crucial for high accuracy. TI recommends a two-point calibration process: zero-scale calibration and full-scale calibration. Use a high-accuracy voltage reference and ensure the device is in a stable thermal environment during calibration. Refer to the datasheet and application notes for detailed calibration procedures.
The ADS1211E requires a clean and stable power supply. Use a low-noise, low-dropout regulator (LDO) and decouple the power pins with 10-100 nF capacitors. Place decoupling capacitors close to the device's power pins and ensure a solid ground plane to minimize noise and interference.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1211E Overview

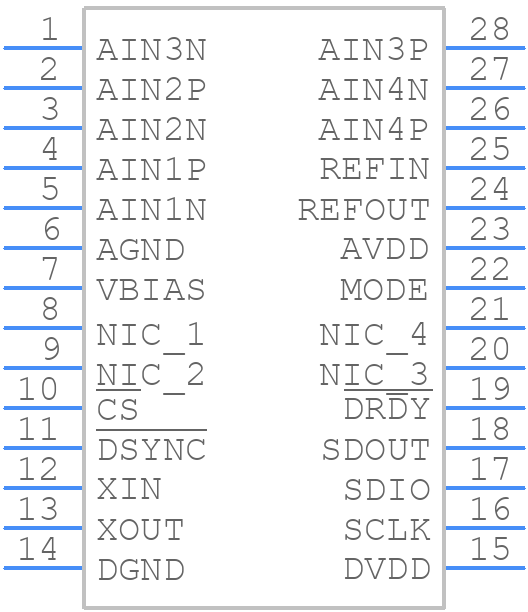

Use the download button to access the ADS1211E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
