The ADS1213U requires careful layout and placement to minimize noise and ensure accurate conversions. TI recommends placing the device close to the analog signal source, using a solid ground plane, and keeping analog and digital traces separate. Additionally, decoupling capacitors should be placed close to the device's power pins.
To optimize the ADS1213U's performance, consider the following: choose the correct gain setting, adjust the sampling rate, and select the appropriate input range. Additionally, ensure proper filtering and shielding to minimize noise, and consider using a dedicated analog power supply.
The ADS1213U outputs 24-bit data, which can be processed using a microcontroller or FPGA. Ensure proper synchronization and data alignment, and consider using a FIFO or buffer to handle data transfer. Additionally, consider using a CRC or checksum to ensure data integrity.
The ADS1213U has an internal calibration mechanism, but it may require additional calibration for specific applications. Consider using an external calibration signal, and perform calibration at multiple temperatures and input ranges to ensure optimal accuracy.
The ADS1213U has a maximum junction temperature of 150°C. Ensure proper thermal design, including heat sinking and airflow, to prevent overheating. Additionally, consider the thermal gradient across the device and its impact on accuracy.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1213U Overview

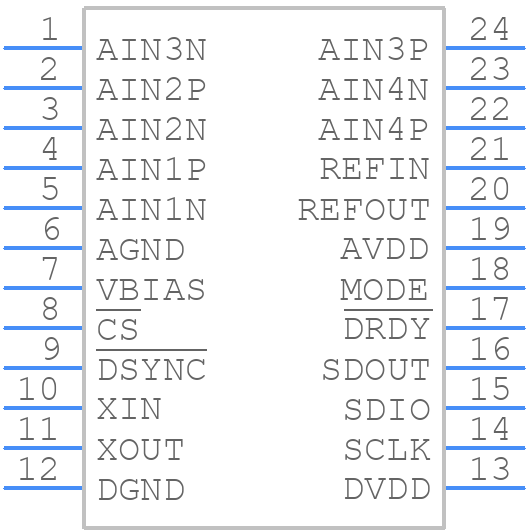

Use the download button to access the ADS1213U schematic symbol, PCB footprint, and 3D model.
