The ADS1217IPFBR is a high-precision ADC, and its performance can be affected by the PCB layout and component placement. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the analog and digital grounds separate, using a solid ground plane, and placing the ADC close to the analog signal sources.
To optimize the ADS1217IPFBR's performance, consider the following: choose the correct gain setting, adjust the sampling rate, and optimize the analog front-end circuitry. Additionally, consider using the ADC's built-in calibration features and adjusting the internal voltage reference to suit your application.
To minimize noise and interference, use proper shielding, grounding, and decoupling techniques. Use a low-pass filter to remove high-frequency noise, and consider using a ferrite bead or common-mode choke to reduce electromagnetic interference (EMI).
To ensure accurate temperature measurement, calibrate the internal temperature sensor by comparing it to a known temperature reference. Also, consider using a thermocouple or other external temperature sensor for more accurate measurements.
The PGA has a limited gain range and can introduce noise and distortion if not properly configured. Be aware of the PGA's gain-bandwidth product limitations and adjust the gain settings accordingly to avoid signal degradation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1217IPFBR Overview

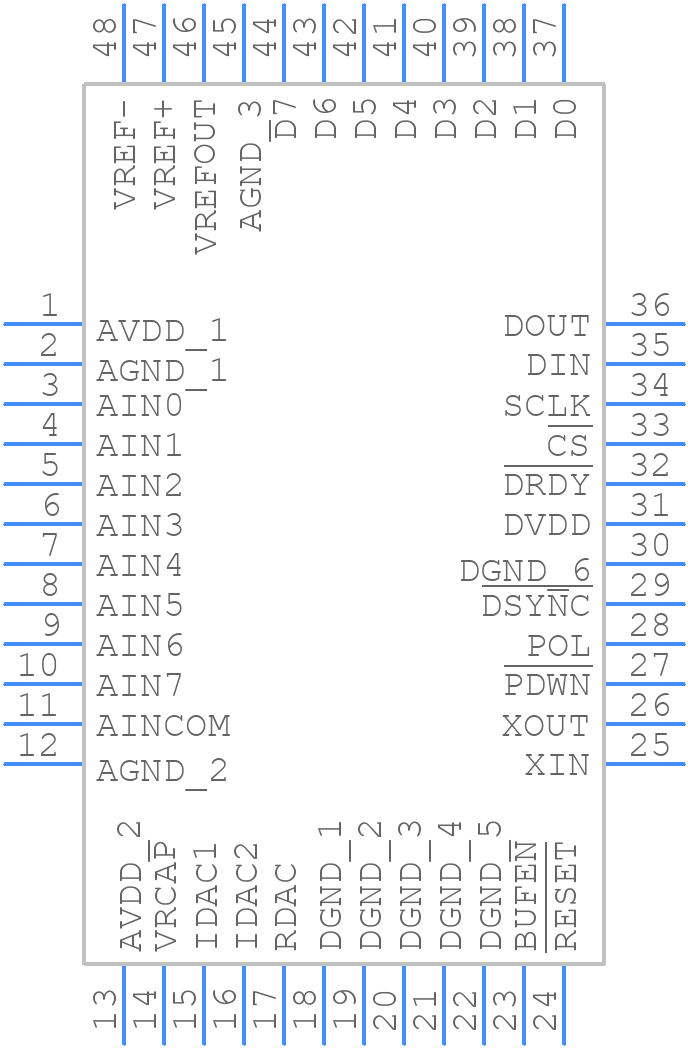

Use the download button to access the ADS1217IPFBR schematic symbol, PCB footprint, and 3D model.
