The ADS1217IPFBTG4 is a high-precision ADC, and its performance is sensitive to PCB layout and component placement. TI recommends following a star-grounding scheme, keeping analog and digital grounds separate, and placing the ADC close to the analog signal sources. Additionally, decoupling capacitors should be placed as close as possible to the ADC's power pins.
To optimize the ADS1217IPFBTG4's performance, consider the following: choose the correct gain setting, adjust the sampling rate, and select the appropriate input range. Additionally, ensure that the input signal is properly filtered and buffered, and that the ADC is operated within its recommended temperature range.
The ADS1217IPFBTG4's performance is affected by temperature. The ADC's offset, gain, and noise floor vary with temperature. TI provides temperature coefficients for these parameters in the datasheet. Engineers should consider these temperature effects when designing their system and ensure that the ADC is operated within its recommended temperature range.
The ADS1217IPFBTG4 communicates through a SPI-compatible interface. Engineers should ensure that their microcontroller or FPGA is configured to match the ADC's SPI mode, clock frequency, and data format. Additionally, they should consider the ADC's latency and throughput requirements when designing their system.
Common pitfalls to avoid when using the ADS1217IPFBTG4 include: incorrect pin connections, inadequate power supply decoupling, insufficient analog input filtering, and incorrect SPI configuration. Engineers should carefully review the datasheet and application notes to avoid these common mistakes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1217IPFBTG4 Overview

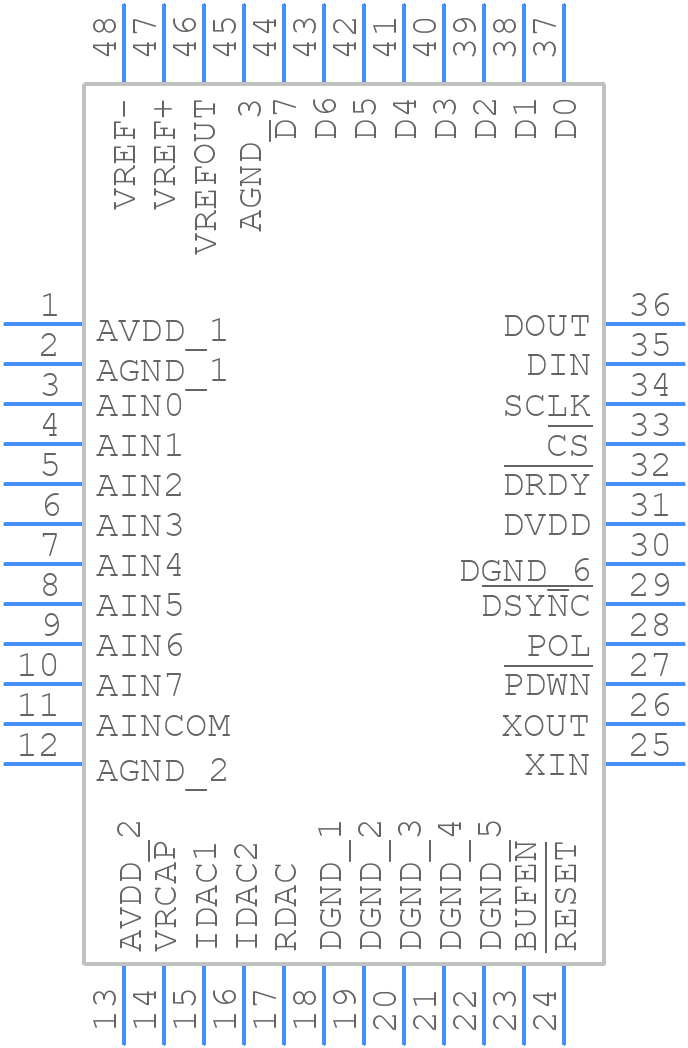

Use the download button to access the ADS1217IPFBTG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
