Description:Analog to Digital Converters - ADC 24-bit, 1kSPS, 4-ch general-purpose delta-sigma ADC with I2C interface and external Vref inputs 16-WQFN -40 to 125
Texas Instruments recommends a 4-layer PCB with a solid ground plane, and placing the ADS1219IRTER close to the analog input sources to minimize noise. Additionally, decoupling capacitors should be placed as close as possible to the device's power pins.
Optimizing the ADC's performance requires careful consideration of the input signal, clock frequency, and gain settings. TI provides an ADC Performance Calculator tool to help engineers optimize the ADS1219IRTER's performance for their specific application.
The ADS1219IRTER's accuracy and performance can be affected by temperature. TI provides temperature coefficients for the device's offset and gain errors, which can be used to correct for temperature-related errors. Additionally, the device's internal temperature sensor can be used to monitor temperature and adjust the ADC's performance accordingly.
To minimize EMI and RFI interference, TI recommends using a shielded enclosure, keeping the analog input signals away from digital signals, and using a common-mode filter or ferrite bead on the analog input lines. Additionally, the ADS1219IRTER's internal digital filter can be used to reject high-frequency noise.
TI recommends powering up the ADS1219IRTER in the following sequence: AVDD, DVDD, and then CLKIN. When powering down, the sequence should be reversed: CLKIN, DVDD, and then AVDD. This ensures that the device's internal voltage regulators are properly powered up and down to prevent damage or incorrect operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1219IRTER Overview

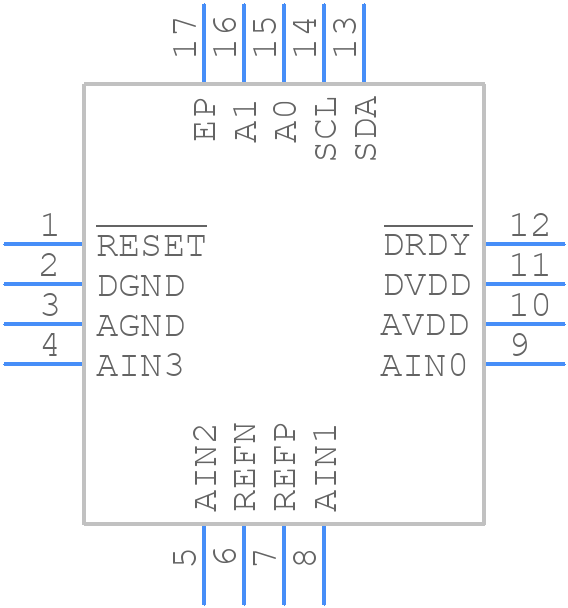

Use the download button to access the ADS1219IRTER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
