The ADS1219 datasheet recommends a 4-layer PCB with a solid ground plane, and placing the device close to the analog input signals to minimize noise. Additionally, it's recommended to use a separate analog ground plane and to keep digital signals away from the analog inputs.
To optimize the ADC's performance, it's essential to understand the application's requirements, such as the input signal range, frequency, and noise tolerance. Adjust the gain, offset, and filter settings accordingly. Also, consider the PCB layout, component selection, and power supply quality to minimize noise and interference.
The ADS1219's analog inputs are differential, so it's recommended to use a differential driver or a instrumentation amplifier to drive the inputs. Ensure the driver's output impedance is low enough to maintain signal integrity, and consider adding a filter or buffer to reduce noise and distortion.
The ADS1219 outputs 24-bit data in a serial format. Use a microcontroller or FPGA to receive and process the data. Ensure the receiving device can handle the data rate and format, and consider using a FIFO or buffer to handle data bursts or interrupts.
The ADS1219 requires a single 3.3V or 5V power supply, with a recommended operating range of 3.135V to 3.465V or 4.75V to 5.25V, respectively. Ensure the power supply is clean and well-regulated, with minimal noise and ripple.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1219IRTET Overview

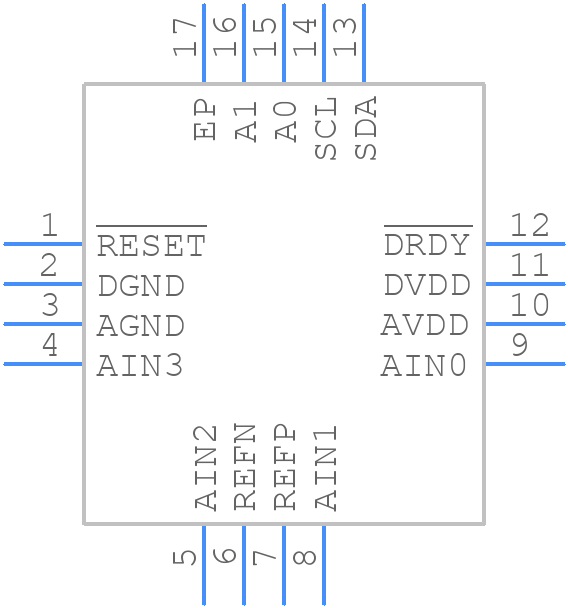

Use the download button to access the ADS1219IRTET schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
