The ADS1220IPW is a high-precision ADC, and its performance can be affected by the PCB layout and component placement. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the analog and digital grounds separate, using a solid ground plane, and placing the ADC close to the analog signal sources.
To optimize the ADS1220IPW's performance, consider the following: choose the correct gain setting, adjust the sampling rate, and select the appropriate clock source. Additionally, ensure that the input signal is properly filtered and amplified, and that the ADC is properly calibrated.
The ADS1220IPW outputs 24-bit data, which can be processed using a microcontroller or FPGA. It is recommended to use a FIFO or buffer to handle the data, and to consider using a CRC or checksum to ensure data integrity.
To ensure the ADS1220IPW's accuracy and linearity, it is recommended to perform a system calibration, including offset and gain calibration. Additionally, consider using a precision voltage reference, and ensure that the input signal is within the ADC's specified range.
The ADS1220IPW requires a single 3.3V or 5V power supply, with a recommended power supply noise of less than 10mV. It is also recommended to use a low-dropout regulator (LDO) and to decouple the power supply lines with capacitors.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1220IPW Overview

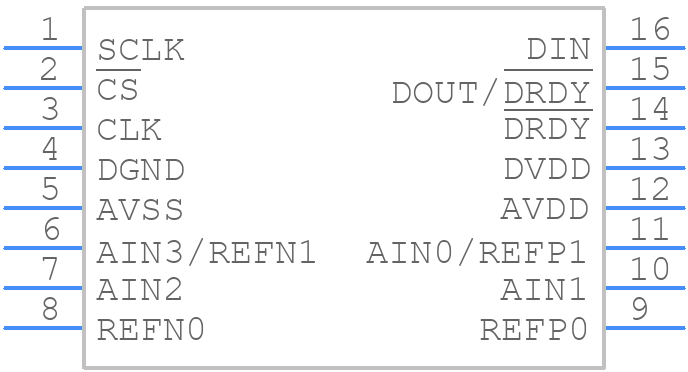

Use the download button to access the ADS1220IPW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
