The ADS1220IPWR requires careful layout and placement to ensure optimal performance. TI recommends placing the device close to the analog signal sources, using a solid ground plane, and keeping the analog and digital traces separate. Additionally, the device should be placed in a quiet area of the board, away from high-frequency noise sources.
To optimize the ADS1220IPWR's performance, consider the following: choose the correct gain setting, adjust the sampling rate, and select the appropriate filter settings. Additionally, ensure proper signal conditioning, such as filtering and amplification, to improve the signal-to-noise ratio.
The recommended power-up sequence for the ADS1220IPWR is to first apply the analog power supply (AVDD), followed by the digital power supply (DVDD), and finally the clock signal. This sequence helps prevent latch-up and ensures proper device operation.
The ADS1220IPWR has an internal oscillator that can be used as the clock source. However, for better accuracy and stability, it is recommended to use an external clock source. Ensure the clock signal is clean and stable, and that the clock frequency is within the recommended range.
The ADS1220IPWR is sensitive to temperature changes, which can affect its performance. Ensure good thermal dissipation by providing adequate heat sinking, avoiding thermal gradients, and keeping the device within the recommended operating temperature range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1220IPWR Overview

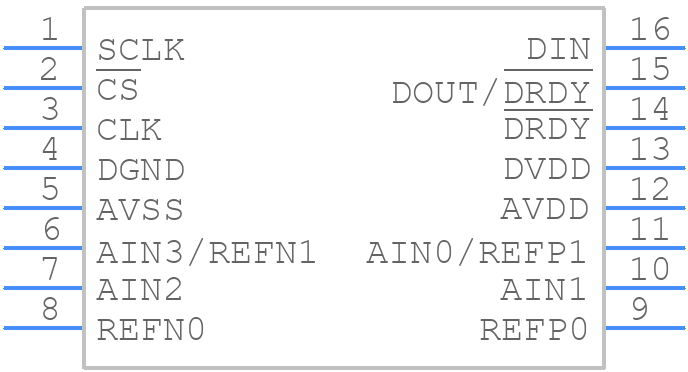

Use the download button to access the ADS1220IPWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
