Texas Instruments provides a recommended layout and placement guide in the ADS1222IPWRG4 datasheet, but it's also important to follow general PCB design best practices for analog-to-digital converters. This includes keeping analog and digital signals separate, using a solid ground plane, and minimizing noise and interference.
Optimizing the performance of the ADS1222IPWRG4 requires understanding the specific requirements of your application, such as the signal frequency, amplitude, and noise environment. TI provides application notes and design guides that can help you optimize the performance of the ADS1222IPWRG4 in your specific application.
The maximum sampling rate of the ADS1222IPWRG4 is 2000 samples per second (SPS), but this can be affected by the clock frequency, gain setting, and other factors. Refer to the datasheet and application notes for more information on achieving the maximum sampling rate.
The ADS1222IPWRG4's analog inputs have a high impedance, which can be challenging to drive. To handle this, use a low-impedance signal source, such as an op-amp buffer, and ensure that the signal is properly terminated and filtered to minimize noise and distortion.
The power consumption of the ADS1222IPWRG4 depends on the operating mode, clock frequency, and other factors. To minimize power consumption, use the lowest possible clock frequency, disable unused features, and use the power-down mode when not in use. Refer to the datasheet for more information on power consumption and power-saving techniques.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1222IPWRG4 Overview

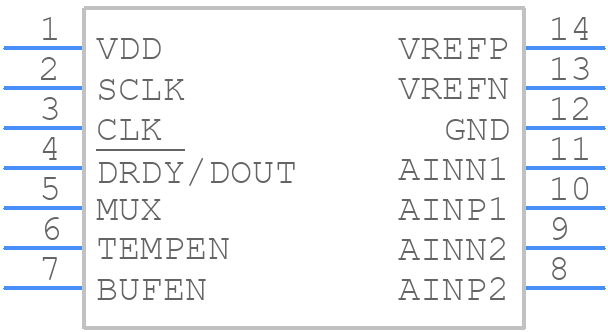

Use the download button to access the ADS1222IPWRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
