The ADS1224IPWT is a sensitive analog device, and proper layout and placement are crucial for optimal performance. It is recommended to place the device close to the analog signal sources, use a solid ground plane, and keep digital signals away from the analog signals. Additionally, use a 4-layer PCB with a dedicated analog ground plane and a separate digital ground plane.
To optimize the ADC's performance, it's essential to understand the application's requirements and adjust the ADC's settings accordingly. This includes selecting the appropriate gain, offset, and data rate. Additionally, consider the input signal's frequency, amplitude, and impedance, and adjust the ADC's input configuration and filtering accordingly.
The recommended power-up sequence for the ADS1224IPWT is to first apply the analog power supply (AVDD), followed by the digital power supply (DVDD), and then the clock signal. This ensures that the analog circuitry is powered up before the digital circuitry, which helps to prevent any potential latch-up conditions.
The ADS1224IPWT's digital output data is available in a 24-bit twos-complement format. To handle the data, it's essential to understand the data format and the device's output coding. The data can be processed using a microcontroller or a dedicated ADC interface IC. Additionally, consider using a FIFO or a buffer to handle the data stream and ensure that the data is not lost or corrupted.
The ADS1224IPWT is a high-performance ADC that can dissipate a significant amount of power. To ensure reliable operation, it's essential to consider thermal management. This includes providing adequate heat sinking, using a thermally conductive PCB material, and ensuring good airflow around the device. The device's junction temperature should be kept below 125°C to ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1224IPWT Overview

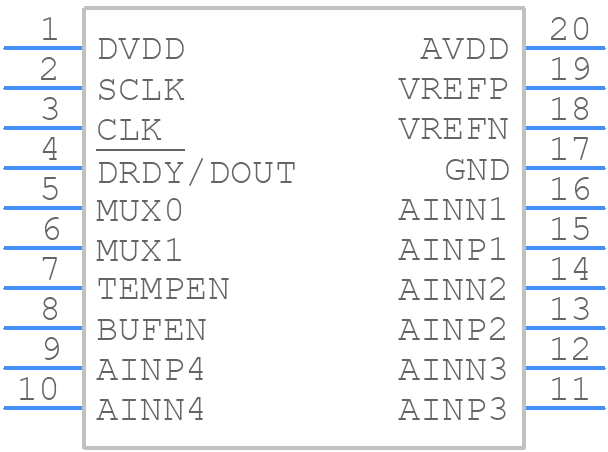

Use the download button to access the ADS1224IPWT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
