The ADS1225IRGVT is a high-precision ADC, and its performance can be affected by the PCB layout and component placement. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the analog and digital grounds separate, using a solid ground plane, and placing the ADC close to the analog signal sources.
To optimize the ADS1225IRGVT's performance, it's essential to understand the application's requirements and adjust the ADC's settings accordingly. This includes selecting the appropriate gain, data rate, and filter settings. Additionally, ensuring a clean and stable power supply, using a low-noise reference voltage, and minimizing electromagnetic interference (EMI) can also improve performance.
The ADS1225IRGVT outputs 24-bit data, which can be processed using a microcontroller or FPGA. It's essential to ensure proper synchronization and data alignment when processing the output data. Additionally, consider using a FIFO or buffer to handle the data stream, and implement error detection and correction mechanisms to ensure data integrity.
The ADS1225IRGVT has an internal calibration mechanism, but it may require additional calibration for specific applications. This can involve adjusting the gain, offset, and linearity using external calibration resistors or software calibration techniques. It's essential to follow the calibration procedure outlined in the datasheet and application notes.
The ADS1225IRGVT is sensitive to temperature changes, which can affect its performance. Ensure proper thermal management by providing adequate heat dissipation, using thermal pads or heat sinks if necessary, and keeping the device within its recommended operating temperature range.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
ADS1225IRGVT Overview

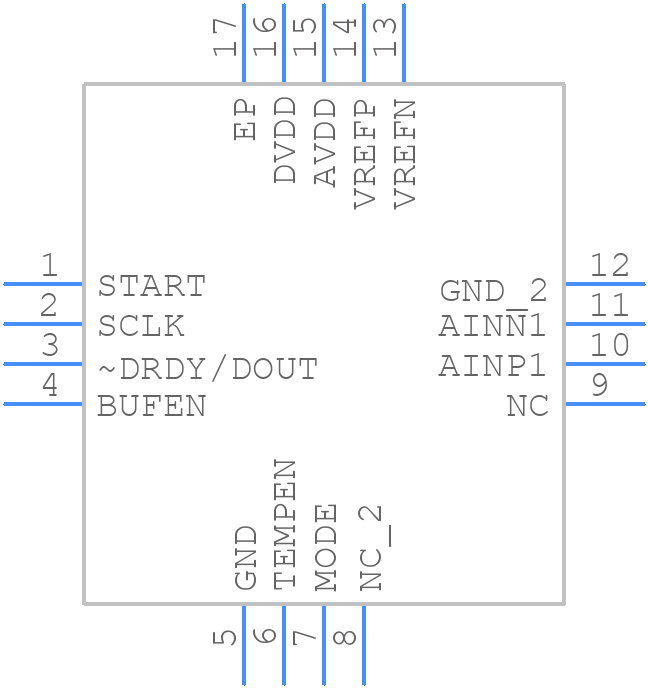

Use the download button to access the ADS1225IRGVT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
