The ADS1225IRGVR is a sensitive analog device, and its performance can be affected by the PCB layout and component placement. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources.
To optimize the ADC's performance, it's essential to understand the application's requirements and adjust the ADC's settings accordingly. This includes selecting the appropriate gain, data rate, and filter settings. Additionally, ensuring a clean and stable power supply, minimizing noise and interference, and using proper signal conditioning techniques can also improve the ADC's performance.
The ADS1225IRGVR outputs 24-bit data, which can be processed and analyzed using a microcontroller or a dedicated ADC interface. It's essential to ensure proper synchronization and data alignment to avoid errors. Additionally, using a FIFO or a buffer to store the data can help manage the data flow and prevent data loss.
The ADS1225IRGVR has an internal calibration mechanism, but it may require additional calibration for specific applications. This can be done by using the device's built-in calibration registers or by implementing an external calibration routine. It's essential to follow the calibration procedure outlined in the datasheet and to ensure that the calibration is performed under the same operating conditions as the application.
The ADS1225IRGVR is a sensitive analog device, and its performance can be affected by temperature. It's essential to ensure that the device operates within its specified temperature range (-40°C to 125°C) and to provide adequate thermal management, such as heat sinks or thermal pads, to prevent overheating.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1225IRGVR Overview

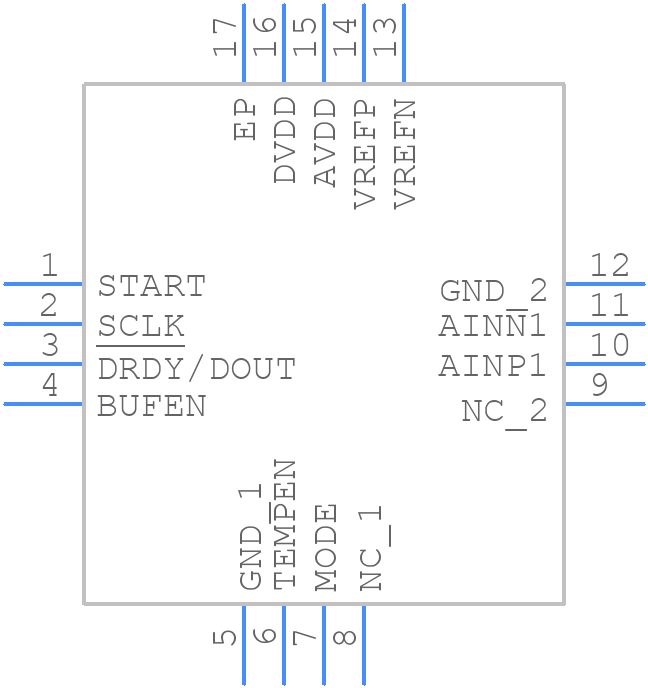

Use the download button to access the ADS1225IRGVR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
