Texas Instruments recommends a 4-layer PCB with a solid ground plane, and placing the ADS1225IRGVRG4 close to the analog input sources. Additionally, it's recommended to keep the analog and digital traces separate and to use a common mode filter to reduce noise.
To optimize performance in noisy environments, use a common mode filter, such as a ferrite bead or a pi-filter, to reduce noise on the analog input lines. Additionally, use a low-pass filter on the reference voltage input to reduce noise. It's also recommended to use a shielded enclosure and to keep the ADS1225IRGVRG4 away from high-frequency sources.
The maximum sampling rate of the ADS1225IRGVRG4 is 2000 samples per second (SPS) in single-shot mode and 1000 SPS in continuous conversion mode. However, the actual sampling rate may be limited by the system's clock frequency and the settling time of the analog input signals.
The ADS1225IRGVRG4 has an internal calibration mechanism that can be triggered through the CAL bit in the MODE2 register. The calibration process takes approximately 10 ms and should be performed after power-up and after any changes to the gain or voltage reference. Additionally, it's recommended to perform a system-level calibration to account for any external component tolerances and errors.
The power consumption of the ADS1225IRGVRG4 depends on the operating mode and the clock frequency. In low-power mode, the typical power consumption is around 350 μA, while in high-speed mode, it's around 1.5 mA. The power consumption can be further reduced by using the power-down mode or by reducing the clock frequency.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1225IRGVRG4 Overview

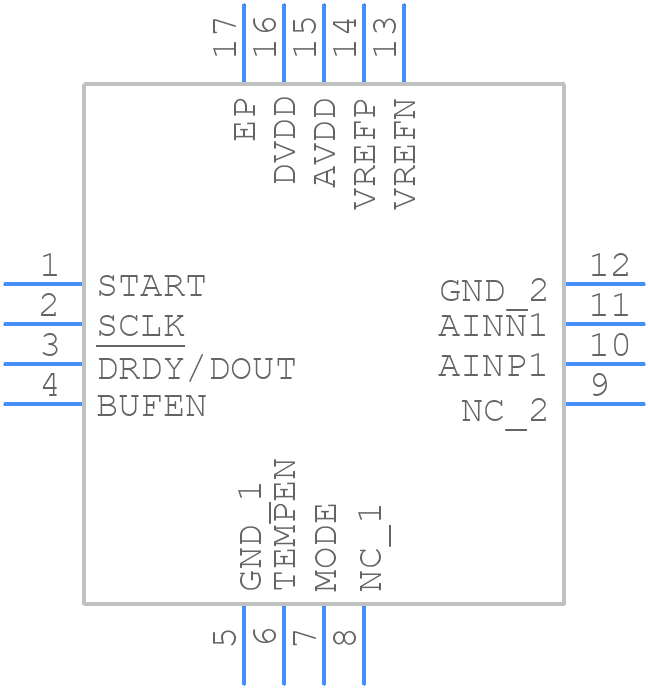

Use the download button to access the ADS1225IRGVRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
