The ADS122U04IPWR requires careful PCB layout and placement to ensure optimal performance. TI recommends placing the device near the analog signal sources, using a solid ground plane, and keeping analog and digital traces separate. Additionally, decoupling capacitors should be placed close to the device's power pins.
To optimize the ADC's performance, consider the following: choose the correct gain setting, adjust the sampling rate, and select the appropriate clock source. Additionally, ensure proper filtering and signal conditioning of the input signal, and consider using the device's built-in features such as the programmable gain amplifier and digital filter.
The recommended power-up sequence is to first apply the analog power supply (AVDD), followed by the digital power supply (DVDD), and then the clock signal. This ensures that the device powers up correctly and minimizes the risk of latch-up or other issues.
The ADS122U04IPWR outputs 24-bit data in a serial format. To handle the digital output data, use a microcontroller or FPGA to receive and process the data. Ensure that the receiving device is configured to match the ADC's data format and clock rate.
The ADS122U04IPWR is sensitive to temperature changes, which can affect its performance. Ensure good thermal dissipation by providing adequate airflow, using a heat sink if necessary, and keeping the device away from heat sources. Operating the device within the recommended temperature range (–40°C to 125°C) is also crucial.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS122U04IPWR Overview

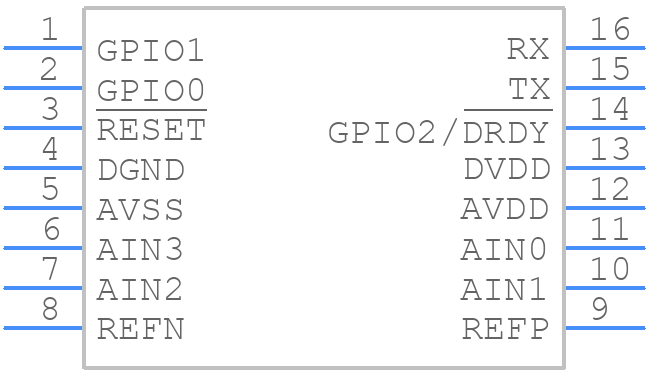

Use the download button to access the ADS122U04IPWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
