The ADS1230IPW requires careful layout and placement to ensure optimal performance. TI recommends placing the device close to the analog signal source, using a solid ground plane, and keeping the analog and digital traces separate. Additionally, the device should be placed away from high-frequency noise sources and heat sources.
The ADS1230IPW requires gain and offset calibration to ensure accurate measurements. TI recommends using the internal calibration registers to adjust the gain and offset. The calibration process involves writing specific values to the calibration registers, which can be found in the datasheet. Additionally, the device can be calibrated using an external calibration signal.
The ADS1230IPW requires a specific power-up sequence to ensure proper operation. TI recommends powering up the device in the following order: AVDD, DVDD, and then the analog input signal. This sequence ensures that the device is properly biased and configured before the analog input signal is applied.
The ADS1230IPW outputs digital data in a 24-bit format. TI recommends using a microcontroller or FPGA to handle the digital output data. The data can be processed and formatted according to the specific application requirements. Additionally, the device can be configured to output data in different formats, such as binary or twos-complement.
The ADS1230IPW is sensitive to noise and interference. TI recommends using proper shielding, grounding, and filtering techniques to reduce noise and interference. Additionally, the device can be configured to use a differential input mode, which can help to reduce common-mode noise.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1230IPW Overview

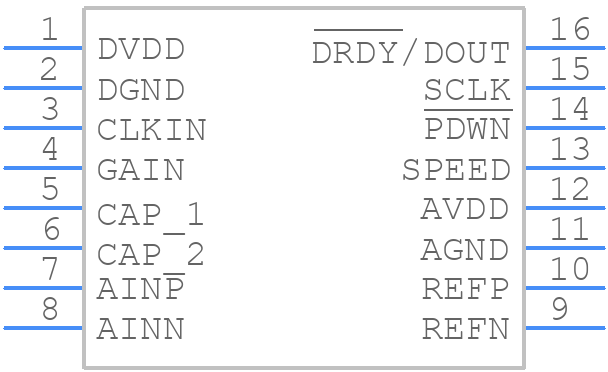

Use the download button to access the ADS1230IPW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
