Texas Instruments recommends a 4-layer PCB with a solid ground plane, and placing the ADS1230IPWG4 close to the analog input signal sources. Additionally, it's recommended to keep the analog and digital grounds separate and connect them at a single point.
To optimize performance in noisy environments, use a low-pass filter on the analog input, keep the analog input traces short and away from digital traces, and use a shielded cable for the analog input signal. Additionally, consider using a common-mode filter or a differential amplifier to reject common-mode noise.
The recommended power-up sequence is to power up the analog supply (AVDD) first, followed by the digital supply (DVDD), and then the clock signal. This ensures that the analog circuitry is stable before the digital circuitry is enabled.
The ADS1230IPWG4 outputs data in a 24-bit twos-complement format. The data should be read on the falling edge of the SCLK signal, and the data should be latched on the rising edge of the SCLK signal. Additionally, the data should be processed in a way that takes into account the device's offset and gain errors.
The maximum sampling rate of the ADS1230IPWG4 is 80SPS (samples per second) when using the internal clock, and up to 100SPS when using an external clock. However, the actual sampling rate may be limited by the system's noise floor and the desired signal-to-noise ratio.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1230IPWG4 Overview

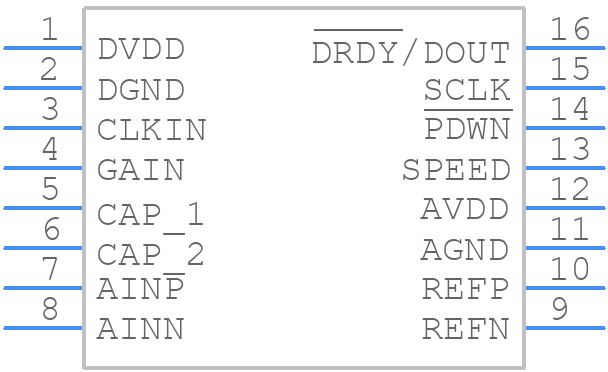

Use the download button to access the ADS1230IPWG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
