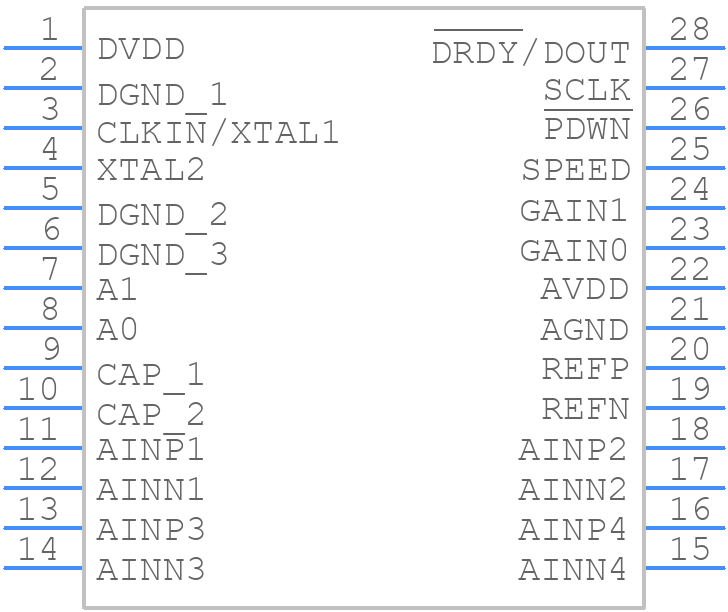

ADS1234IPWG4 - Texas Instruments

ADS1234IPWG4 Details

• Manufacturer Part Number:

  ADS1234IPWG4

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  SSOP

• Package Description:

  TSSOP-28

• Pin Count:

  28

• Country Of Origin:

  Taiwan

• HTS Code:

  8542.39.00.30

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Analog Input Voltage-Max:

  2.5 V

• Analog Input Voltage-Min:

  -0.1 V

• Conversion Time-Max:

  12.5 µs

• Converter Type:

  ADC, DELTA-SIGMA

• JESD-30 Code:

  R-PDSO-G28

• JESD-609 Code:

  e4

• Length:

  9.7 mm

• Linearity Error-Max (EL):

  0.001%

• Moisture Sensitivity Level:

  2

• Number of Analog In Channels:

  4

• Number of Bits:

  24

• Number of Functions:

  1

• Number of Terminals:

  28

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Output Bit Code:

  2S COMPLEMENT BINARY

• Output Format:

  SERIAL

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Equivalence Code:

  TSSOP28,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Sample Rate:

  0.00008 MHz

• Seated Height-Max:

  1.2 mm

• Supply Current-Max:

  2.5 mA

• Supply Voltage-Min:

  2.7 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  BIPOLAR

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  4.4 mm
