Texas Instruments provides a recommended layout and routing guide in the ADS1240E datasheet, which includes guidelines for placing components, routing signals, and minimizing noise. Additionally, the TI website has a PCB layout example for the ADS1240E evaluation module that can be used as a reference.
The ADS1240EG4 has an internal calibration mechanism that can be initiated through the CAL pin. The calibration process involves shorting the CAL pin to ground, which triggers the internal calibration sequence. The device also has a system calibration mode that can be initiated through the SPI interface. Refer to the datasheet for more details on the calibration process.
The maximum sampling rate of the ADS1240EG4 depends on the clock frequency and the number of channels being converted. With a 4.096 MHz clock, the maximum sampling rate is approximately 2.5 kSPS per channel. However, this rate can be increased by using a higher clock frequency or by using the device's burst mode feature.
The ADS1240EG4's analog inputs have a high impedance, which can make them susceptible to noise and interference. To minimize this, it is recommended to use a low-impedance signal source, such as an op-amp buffer, and to keep the signal traces as short as possible. Additionally, the use of a guard ring around the analog inputs can help to reduce noise and interference.
The ADS1240EG4 is designed to operate from a 2.7V to 5.5V power supply, but it is not recommended to operate the device at 5V. Operating the device at 5V can increase power consumption and reduce the device's accuracy and reliability. It is recommended to operate the device at a voltage between 3.3V and 4.5V for optimal performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1240EG4 Overview

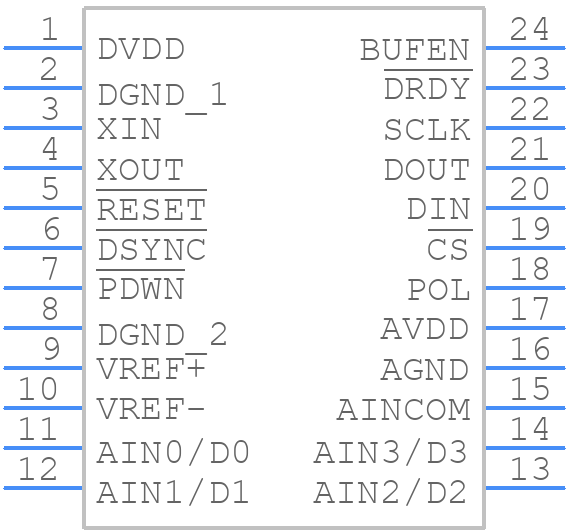

Use the download button to access the ADS1240EG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
