The ADS1242IPWT is a high-precision ADC, and its performance can be affected by the PCB layout and component placement. It is recommended to follow a star-grounding scheme, keep analog and digital grounds separate, and place the ADC close to the analog signal sources. Additionally, decoupling capacitors should be placed as close as possible to the ADC's power pins.
To optimize the ADS1242IPWT's performance, it is essential to understand the application's requirements and adjust the ADC's settings accordingly. This includes selecting the appropriate gain, offset, and sampling rate. Additionally, the ADC's internal calibration can be used to improve its performance. It is also recommended to consult the device's datasheet and application notes for specific guidance.
The ADS1242IPWT is a high-precision ADC, and it can be affected by electromagnetic interference (EMI) and radio-frequency interference (RFI). To mitigate these effects, it is recommended to use proper shielding, grounding, and filtering techniques. Additionally, the ADC's internal digital filter can be used to reduce the impact of noise on the conversion results.
The ADS1242IPWT's accuracy and linearity can be affected by temperature changes. To ensure optimal performance, it is recommended to use the ADC's internal calibration feature, which can compensate for temperature-related errors. Additionally, the device's temperature range should be considered during the design process, and the ADC should be operated within its specified temperature range.
The ADS1242IPWT has specific power sequencing requirements to ensure proper operation. The analog power supply (AVDD) should be powered up before the digital power supply (DVDD), and the digital power supply should be powered down before the analog power supply. Additionally, the device's power-on reset (POR) circuitry should be considered during the design process.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1242IPWT Overview

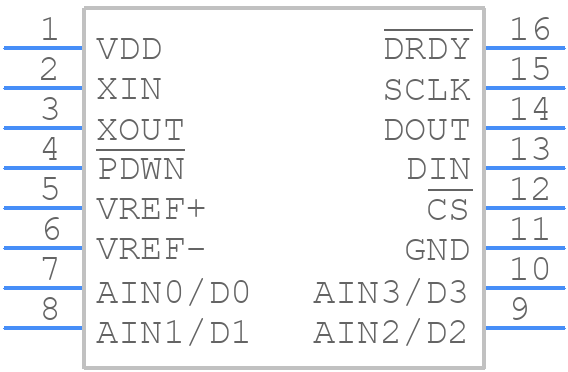

Use the download button to access the ADS1242IPWT schematic symbol, PCB footprint, and 3D model.
