Texas Instruments provides a layout guide and PCB design checklist in the ADS1245IDGST datasheet and application notes. It's essential to follow these guidelines to ensure optimal performance, minimize noise, and reduce electromagnetic interference (EMI).
The ADS1245IDGST has a built-in calibration mechanism, but you may need to fine-tune the gain and offset calibration for your specific application. TI provides an application note (SLAA454) that explains the calibration process and provides examples of how to optimize the calibration for different scenarios.
The ADS1245IDGST has a maximum sampling rate of 2000 samples per second (SPS) for a single channel, and 1000 SPS for multiple channels. However, the actual sampling rate may be limited by the system's clock frequency, filter settings, and other factors. Consult the datasheet and application notes for more information.
The ADS1245IDGST has high-impedance analog inputs, which can be sensitive to noise and interference. To minimize these effects, use a low-impedance signal source, add a buffer amplifier or op-amp, and ensure proper shielding and grounding of the PCB.
The ADS1245IDGST has a typical power consumption of 12.5 mW at 2.7 V and 1.5 mW at 1.8 V. To reduce power consumption, consider using the device's power-down mode, reducing the clock frequency, and optimizing the system's power management.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1245IDGST Overview

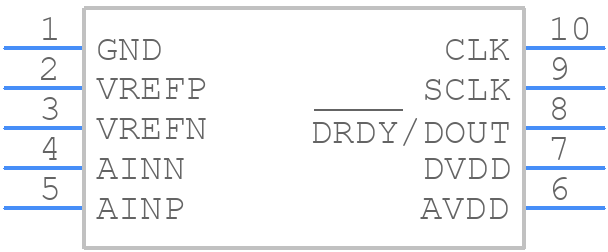

Use the download button to access the ADS1245IDGST schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
