The ADS1246IPWR requires careful layout and placement to minimize noise and ensure optimal performance. TI recommends placing the device close to the analog signal sources, using a solid ground plane, and keeping analog and digital traces separate. Additionally, decoupling capacitors should be placed close to the device's power pins.
To optimize the ADS1246IPWR's performance, consider the following: choose the correct gain setting, adjust the sampling rate, and select the appropriate input range. Additionally, ensure proper filtering and shielding to minimize noise, and consider using the device's built-in calibration features.
The ADS1246IPWR's digital output data should be handled carefully to avoid data corruption. Use a first-in-first-out (FIFO) buffer or a dedicated DMA channel to handle the data stream. Ensure the receiving system can handle the data rate and format, and consider using error detection and correction mechanisms.
To ensure accuracy and linearity, calibrate the ADS1246IPWR regularly, especially over temperature changes. Use the device's built-in calibration features, and consider implementing external calibration methods. Additionally, ensure the device is operated within its specified temperature range and power supply voltage.
The ADS1246IPWR requires a stable power supply to ensure accurate operation. Use a low-noise, regulated power supply, and consider adding decoupling capacitors to filter out noise. Ensure the power supply voltage is within the specified range, and avoid voltage drops or brownouts.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1246IPWR Overview

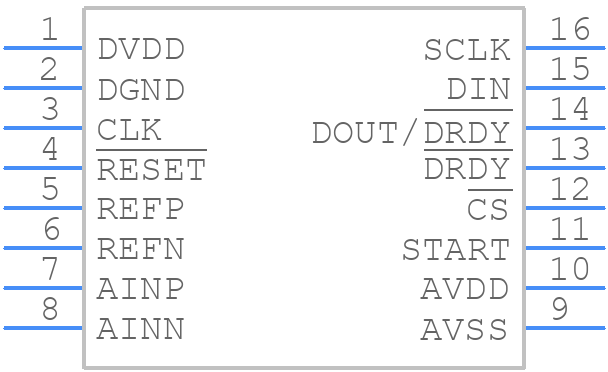

Use the download button to access the ADS1246IPWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
