The ADS1247IPWR is a high-precision ADC, and its performance can be affected by the PCB layout and component placement. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the analog and digital grounds separate, using a solid ground plane, and placing the ADC close to the analog signal sources.
To optimize the ADS1247IPWR's performance, consider the following: choose the correct gain setting, adjust the sampling rate, and optimize the analog front-end circuitry. Additionally, consider using the ADC's built-in calibration features and adjusting the internal voltage reference to suit your application.
The ADS1247IPWR outputs 24-bit data, which can be processed using a microcontroller or FPGA. It is recommended to use a FIFO or buffer to handle the data stream, and to consider using a CRC or checksum to ensure data integrity.
To ensure accuracy and linearity, consider the following: use a high-quality voltage reference, implement a calibration routine, and use the ADC's built-in temperature sensor to compensate for temperature effects. Additionally, consider using a precision voltage reference and a stable clock source.
The ADS1247IPWR requires a clean and stable power supply to ensure optimal performance. Consider using a low-noise, low-dropout regulator, and ensure that the power supply is decoupled from the analog and digital circuits. Additionally, consider using a power-on reset circuit to ensure proper startup.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1247IPWR Overview

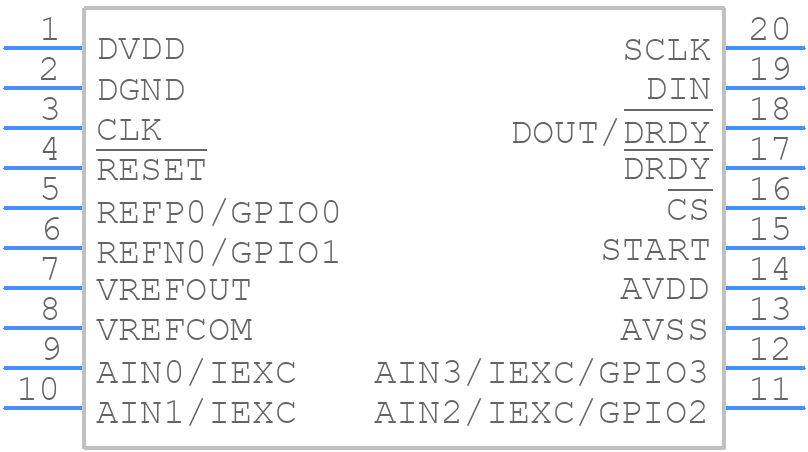

Use the download button to access the ADS1247IPWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
