Description:Analog to Digital Converters - ADC 24-Bit, 4kSPS, 12-Ch Delta-Sigma ADC With PGA and Voltage Reference for Precision Sensor Measurement 32-TQFP -50 to 125
A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog signals away from the digital signals. Additionally, use a low-pass filter to reduce noise and ensure a clean power supply.
The ADS124S08IPBS has an internal calibration mechanism. However, if external calibration is required, it can be done by applying a known input voltage and adjusting the offset and gain registers accordingly. The calibration process should be done at multiple points to ensure linearity.
The maximum sampling rate of the ADS124S08IPBS is 2 kSPS. However, the actual sampling rate may be limited by the system's clock frequency, filter settling time, and other system-level constraints.
To mitigate EMI issues, use shielding, grounding, and filtering techniques. Ensure that the analog input signals are properly filtered and shielded, and the device is placed in a shielded enclosure. Additionally, use a common-mode filter to reject common-mode noise.
The power consumption of the ADS124S08IPBS is typically around 1.5 mA. To reduce power consumption, use the device's power-down mode, reduce the clock frequency, and optimize the system's power management strategy.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS124S08IPBS Overview

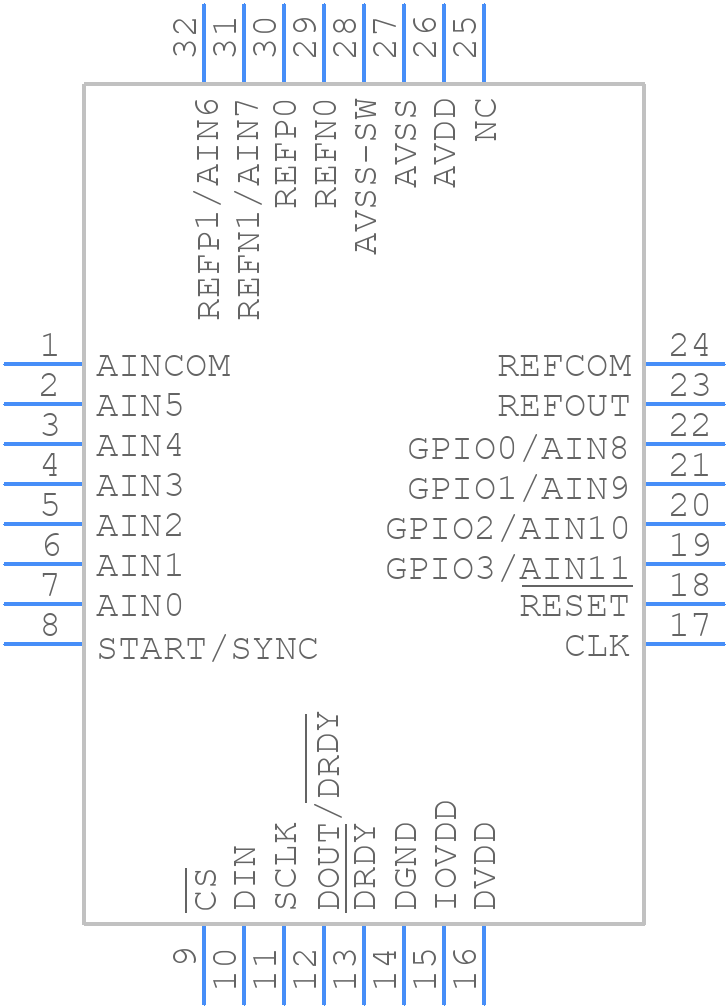

Use the download button to access the ADS124S08IPBS schematic symbol, PCB footprint, and 3D model.
