Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep analog and digital signals separate. Use short, direct traces for analog signals, and avoid crossing digital signals over analog signals. Also, use a common mode filter capacitor (e.g., 10nF) between the analog input pins and the analog ground pin.
Use the built-in calibration features of the ADS124S08IPBSR, such as the internal calibration voltage source and the calibration registers. Consult the datasheet and application notes for specific calibration procedures. Additionally, consider using the TI-provided calibration software tools to simplify the process.
Power up the device in the following sequence: 1) Apply analog power (AVDD), 2) Apply digital power (DVDD), 3) Apply analog input signals, and 4) Initialize the device through the SPI interface. Ensure that the power supplies are stable and within the recommended operating range before initializing the device.
Implement error detection and handling mechanisms in your firmware, such as checking the device's status registers and error flags. Use the device's built-in error detection features, such as the overrange and underflow flags, to detect and respond to errors. Consult the datasheet and application notes for specific guidance.
Ensure good thermal conductivity between the device and the PCB, and consider using thermal vias or heat sinks if necessary. Operate the device within the recommended temperature range (-40°C to 125°C), and consider using thermal monitoring and shutdown mechanisms to prevent overheating. Consult the datasheet and application notes for specific thermal management guidelines.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS124S08IPBSR Overview

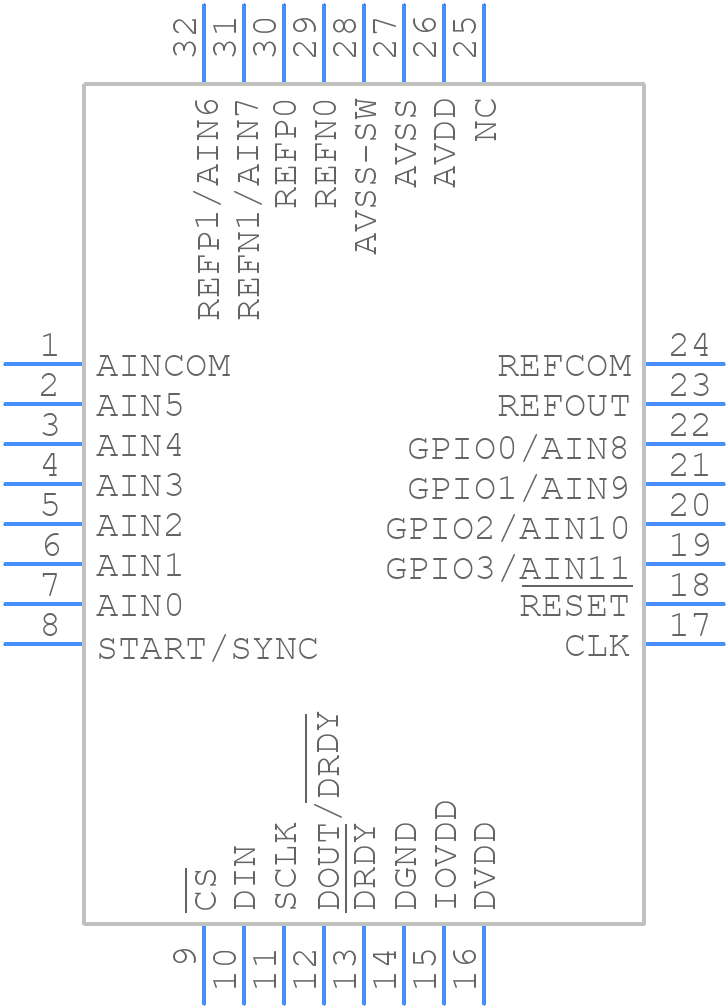

Use the download button to access the ADS124S08IPBSR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
