ADS124S08IRHBR - Texas Instruments

Description: 24-Bit, 4kSPS, 12-Ch Delta-Sigma ADC with PGA and Voltage Reference for Precision Sensor Measurement

Download ADS124S08IRHBR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

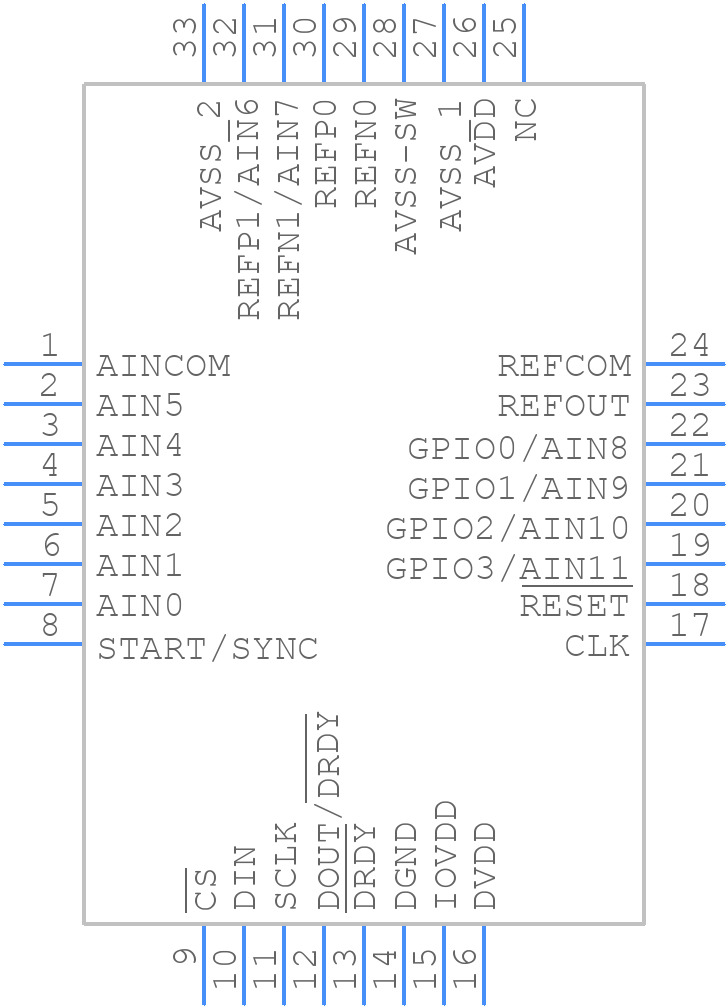

Symbol
ADS124S08IRHBR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADS124S08IRHBR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHB0032M
click to zoom
3D Models
ADS124S08IRHBR - Texas Instruments - 3D model - Quad Flat No-Lead - RHB0032M
click to zoom

ADS124S08IRHBR Details

  • Manufacturer Part Number:

    ADS124S08IRHBR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    2016-08-09

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    5.25 V

  • Analog Input Voltage-Min:

    -0.5 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    12

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -50 °C

  • Output Bit Code:

    2'S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.004 MHz

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    0.28 mA

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

ADS124S08IRHBR Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog signals away from the digital signals. Additionally, use a low-pass filter on the analog input pins to reduce noise.
  • The ADS124S08IRHBR has an internal calibration mechanism. However, it's recommended to perform an external calibration using a known voltage reference to ensure accurate readings. The calibration process involves applying a known voltage to the input pins and adjusting the internal calibration registers accordingly.
  • The maximum sampling rate of the ADS124S08IRHBR is 2 kSPS. The power consumption increases with the sampling rate, so it's essential to optimize the sampling rate based on the application requirements to minimize power consumption.
  • The ADS124S08IRHBR outputs 24-bit digital data in a two's complement format. The output data can be handled using a microcontroller or a dedicated ADC interface IC. The data can be processed and converted to a more readable format, such as voltage or temperature, using software or firmware.
  • The ADS124S08IRHBR is specified to operate over a temperature range of -40°C to 125°C. The accuracy and performance of the device may degrade at extreme temperatures. It's essential to consider the temperature range of the application and ensure that the device is operated within its specified temperature range.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADS124S08IRHBR Overview

Use the download button to access the ADS124S08IRHBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12, or try a keyword search, such as Analog to Digital Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
