The ADS1250U requires careful layout and routing to minimize noise and ensure accurate conversions. TI recommends a 4-layer PCB with a solid ground plane, and to keep analog and digital traces separate. Additionally, decoupling capacitors should be placed close to the device.
To optimize the ADS1250U's performance, consider the input signal's frequency, amplitude, and impedance. Adjust the gain, filter settings, and sampling rate accordingly. Also, ensure proper grounding, shielding, and decoupling to minimize noise and interference.
The ADS1250U outputs 24-bit data in a specific format. Ensure your microcontroller or processor can handle this format, and consider using a FIFO or buffer to handle the high-speed data stream. Also, consider implementing error checking and correction mechanisms.
The ADS1250U has an internal calibration mechanism. Perform a self-calibration cycle after power-up, and consider implementing an external calibration routine to compensate for temperature and voltage variations.
The ADS1250U has a maximum junction temperature of 150°C. Ensure good thermal dissipation by using a heat sink or thermal pad, and avoid exposing the device to extreme temperatures or thermal gradients.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1250U Overview

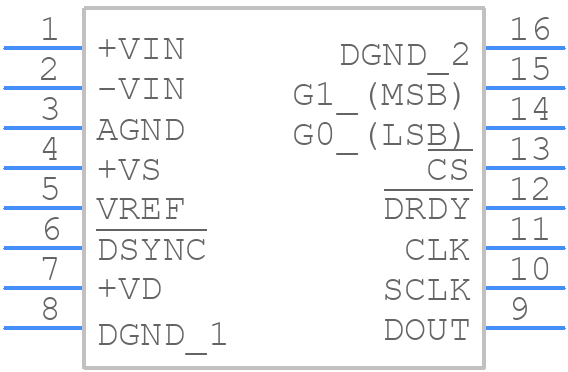

Use the download button to access the ADS1250U schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
