Texas Instruments provides a layout and routing guide in the application note SLAA422, which includes recommendations for PCB layout, component placement, and routing to minimize noise and ensure optimal performance.
The ADS1251U/2K5G4 has an internal calibration mechanism, but it may require external calibration for high-accuracy applications. Texas Instruments provides a calibration procedure in the application note SLAA423, which includes steps for offset and gain calibration.
The ADS1251U/2K5G4 has a maximum input voltage range of ±5V, but it can be limited by the supply voltage and the PGA gain setting. It's recommended to consult the datasheet and application notes for specific guidance on input voltage range and PGA gain settings.
Texas Instruments provides guidance on noise reduction and interference mitigation in the application note SLAA424, which includes recommendations for shielding, grounding, and filtering. Additionally, the ADS1251U/2K5G4 has built-in features such as a noise filter and a PGA gain stage to help reduce noise and interference.
The power consumption of the ADS1251U/2K5G4 depends on the operating mode, sampling rate, and PGA gain setting. According to the datasheet, the typical power consumption is around 15mW at 100kSPS and 3.3V supply voltage. However, it's recommended to consult the datasheet and application notes for specific power consumption estimates based on the application requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1251U/2K5G4 Overview

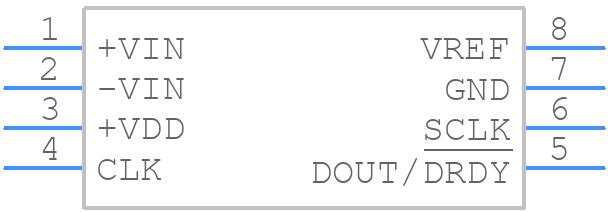

Use the download button to access the ADS1251U/2K5G4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
