The ADS1251UG4 is a high-precision ADC, and its performance can be affected by the PCB layout and component placement. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the analog and digital grounds separate, using a solid ground plane, and placing the ADC close to the analog signal sources.
To optimize the ADS1251UG4's performance, consider the following: choose the correct gain setting, adjust the sampling rate, and select the appropriate input range. Additionally, ensure proper filtering and shielding of the analog input signals, and consider using a dedicated analog power supply.
The ADS1251UG4's performance can be affected by temperature. The device's offset and gain drift with temperature, which can impact accuracy. It is essential to consider temperature compensation and calibration techniques to ensure accurate measurements over the desired temperature range.
To minimize EMI and RFI, use proper shielding, grounding, and filtering techniques. Ensure the ADC is placed in a shielded enclosure, and use EMI filters on the analog input signals. Additionally, consider using a dedicated analog power supply and separating analog and digital grounds.
The ADS1251UG4 requires calibration to ensure accurate measurements. The recommended calibration procedure involves applying a known input voltage, measuring the output code, and adjusting the gain and offset to achieve the desired accuracy. It is essential to follow the calibration procedure outlined in the datasheet or application notes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1251UG4 Overview

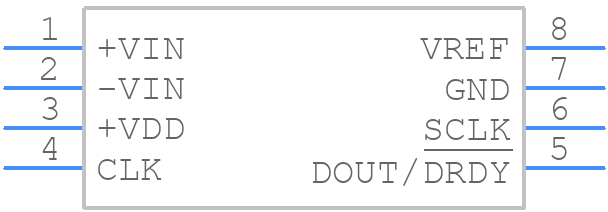

Use the download button to access the ADS1251UG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
