The ADS1252U requires careful PCB layout and routing to minimize noise and ensure accurate conversions. TI recommends a 4-layer PCB with a solid ground plane, and to keep analog and digital traces separate. Additionally, decoupling capacitors should be placed close to the device.
To optimize the ADS1252U's performance, consider the following: choose the correct gain setting, adjust the sampling rate, and select the appropriate input range. Additionally, consider using the device's built-in calibration features and adjusting the PGA gain to optimize SNR and linearity.
The ADS1252U is specified to operate from -40°C to 105°C. However, high temperatures can affect the device's accuracy and noise performance. Ensure proper thermal management, and consider using thermal pads or heat sinks to maintain a stable temperature.
To ensure EMC, follow proper PCB design and layout practices, such as using a solid ground plane, minimizing loop areas, and using shielding. Additionally, consider using EMI filters and ferrite beads to reduce emissions and susceptibility.
The ADS1252U requires a specific power sequencing to ensure proper operation. The analog supply (AVDD) should be powered up before the digital supply (DVDD), and the device should be reset after power-up. Refer to the datasheet for specific timing requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1252U Overview

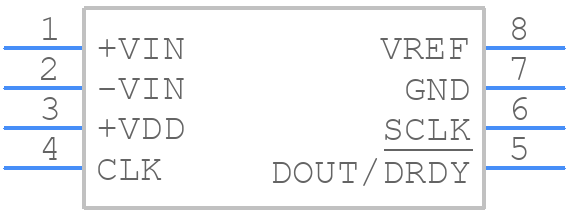

Use the download button to access the ADS1252U schematic symbol, PCB footprint, and 3D model.
