Texas Instruments provides a recommended layout and routing guide in the ADS1252UG4EVM user's guide, which includes guidelines for PCB layout, component placement, and routing to minimize noise and ensure optimal performance.
The ADS1252UG4 has an internal calibration mechanism, but it may require external calibration for high-accuracy applications. Texas Instruments provides a calibration procedure in the datasheet, which involves shorting the inputs, applying a known voltage, and adjusting the offset and gain registers.
The ADS1252UG4 has a maximum input voltage range of ±5V, but it can be limited by the supply voltage and the PGA gain setting. It's essential to ensure that the input voltage does not exceed the supply voltage or the maximum rating specified in the datasheet.
To minimize noise and interference, use proper PCB layout and routing techniques, such as separating analog and digital signals, using ground planes, and adding bypass capacitors. Additionally, use the ADS1252UG4's built-in noise reduction features, such as the 50/60Hz notch filter and the adjustable gain and offset.
The power consumption of the ADS1252UG4 varies depending on the operating mode, sampling rate, and PGA gain setting. According to the datasheet, the typical power consumption is around 12mW at 10ksps and 3.3V supply voltage, but it can be as low as 2.5mW in low-power mode.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1252UG4 Overview

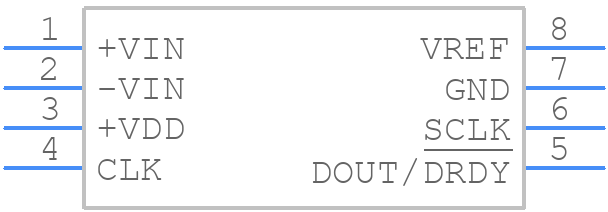

Use the download button to access the ADS1252UG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
