- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for ADS1259IPWR
- Part Number ADS1259IPWR
- Manufacturer Texas Instruments
- Pin Count 20
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - PW (R-PDSO-G20)
- Released Date Jan 12, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
ADS1259IPWR Details
-
Manufacturer Part Number:
ADS1259IPWR
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
TSSOP
-
Package Description:
TSSOP-20
-
Pin Count:
20
-
Country Of Origin:
Malaysia
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.30
-
Manufacturer:
Texas Instruments
ADS1259IPWR Frequently Asked Questions (FAQs)
-
The recommended layout and routing for the ADS1259IPWR involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. It's also important to keep the analog and digital power supplies separate and to use decoupling capacitors to reduce noise.
-
To optimize the performance of the ADS1259IPWR in noisy environments, use a low-pass filter on the analog input, use a shielded cable for the analog input, and consider using a common-mode filter or a differential amplifier to reduce common-mode noise. Additionally, use a low-noise power supply and consider using a ferrite bead or a choke to reduce electromagnetic interference (EMI).
-
The maximum sampling rate of the ADS1259IPWR is 30 kSPS (kilosamples per second). However, the actual sampling rate may be limited by the system's clock frequency, the analog input bandwidth, and the digital interface.
-
The ADS1259IPWR has an internal calibration circuit that can be used to calibrate the device. The calibration process involves shorting the analog input to the internal reference voltage and then adjusting the offset and gain registers to achieve the desired accuracy. The calibration process can be performed using the device's internal calibration circuit or through external calibration using a precision voltage source.
-
The power consumption of the ADS1259IPWR depends on the operating mode and the clock frequency. In normal operation, the device consumes around 15 mW of power. In power-down mode, the device consumes around 10 μW of power.
Trust Checks
System Verified
ADS1259IPWR Overview

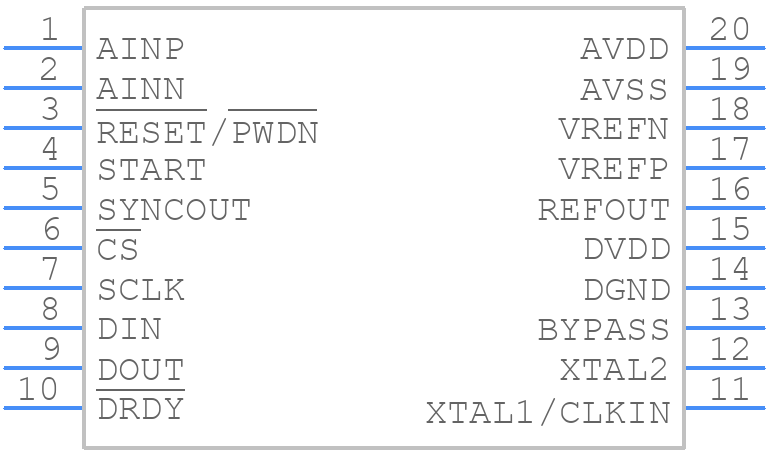

Use the download button to access the ADS1259IPWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
