To minimize noise and ensure accurate readings, it is recommended to follow a star-grounding scheme, keep analog and digital traces separate, and use a solid ground plane. Additionally, place the ADC close to the analog signal sources, and use shielding and filtering to reduce electromagnetic interference (EMI).
Calibration involves adjusting the ADC's offset and gain to match the specific application's requirements. This can be done using the ADC's built-in calibration registers or through external calibration techniques such as system-level calibration or self-calibration. Consult the datasheet and application notes for specific calibration procedures.
The maximum sampling rate of the ADS125H01IRHBR is 30 kSPS. However, the actual achievable sampling rate depends on the system's clock frequency, analog input frequency, and filter settings. Higher sampling rates increase power consumption, so it's essential to balance sampling rate with power consumption requirements.
The ADS125H01IRHBR has built-in overvoltage protection, but it's still essential to implement external protection circuits to prevent damage from overvoltage or undervoltage conditions. Use voltage regulators, zener diodes, or transient voltage suppressors to clamp voltages within the ADC's specified range.
The ADS125H01IRHBR can be interfaced with a microcontroller or FPGA using a serial peripheral interface (SPI) or inter-integrated circuit (I2C) bus. Ensure proper synchronization, clocking, and data formatting to ensure reliable data transfer. Consult the datasheet and application notes for specific interface guidelines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS125H01IRHBR Overview

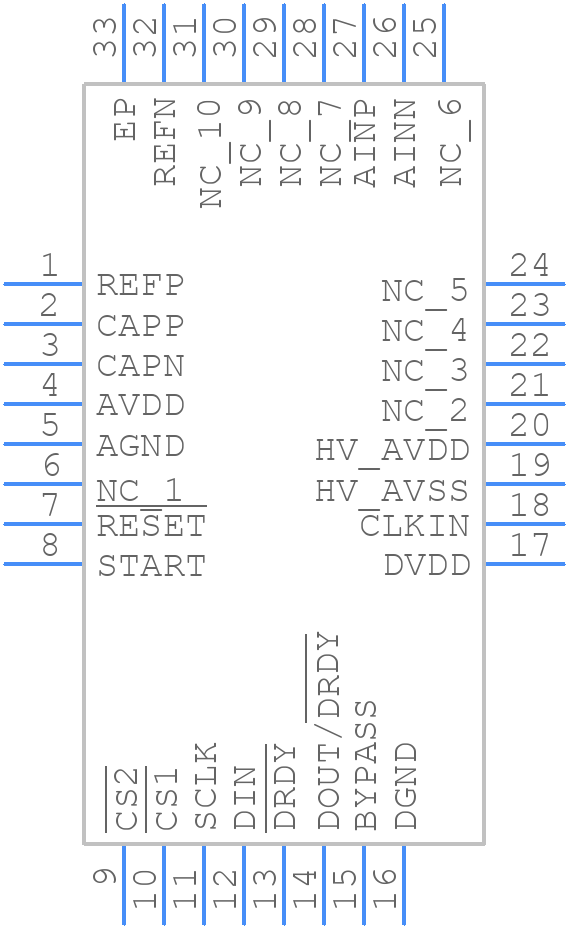

Use the download button to access the ADS125H01IRHBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
