The ADS1261BIRHBR requires careful layout and placement to minimize noise and ensure optimal performance. TI recommends placing the device close to the analog signal sources, using a solid ground plane, and keeping analog and digital traces separate. Additionally, decoupling capacitors should be placed close to the device's power pins.
To optimize the ADS1261BIRHBR's performance, consider the following: choose the correct gain setting, adjust the sampling rate, and select the appropriate filter settings. Additionally, ensure proper signal conditioning, use a stable reference voltage, and minimize noise in the system.
The ADS1261BIRHBR's digital interface requires careful handling to ensure reliable data transfer. Use a stable clock source, ensure proper synchronization, and implement error checking mechanisms to detect and correct data transmission errors.
Calibration is crucial for achieving optimal accuracy with the ADS1261BIRHBR. Perform a full-scale calibration to adjust the device's gain and offset, and consider implementing a system-level calibration to account for external factors such as temperature and voltage variations.
The ADS1261BIRHBR requires a stable power supply to ensure accurate conversions. Use a low-noise, regulated power supply, and consider implementing a voltage regulator to minimize power supply noise and ripple.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1261BIRHBR Overview

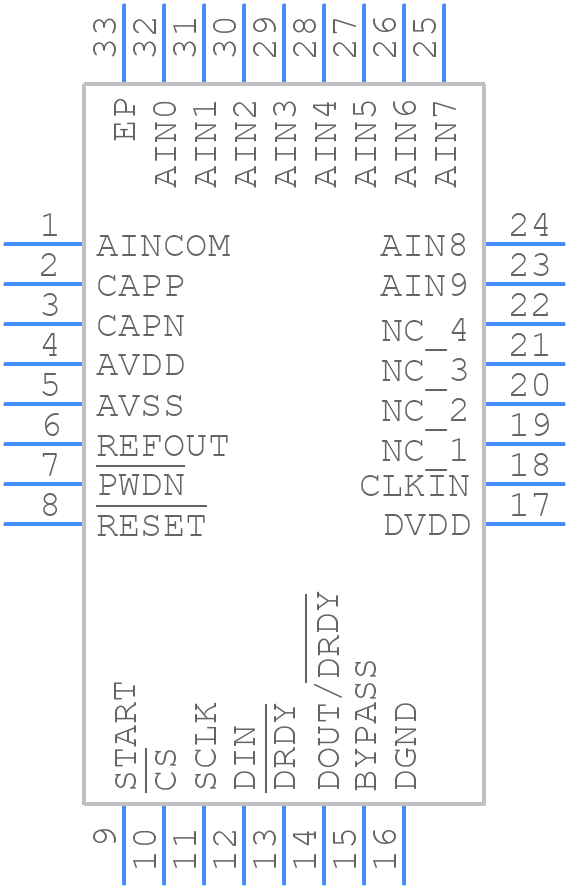

Use the download button to access the ADS1261BIRHBR schematic symbol, PCB footprint, and 3D model.
