The ADS1261BQWRHMRQ1 requires careful layout and placement to minimize noise and ensure optimal performance. TI recommends placing the device close to the analog signal sources, using a solid ground plane, and keeping analog and digital traces separate. Additionally, decoupling capacitors should be placed close to the device's power pins.
To optimize the ADS1261BQWRHMRQ1's performance, consider the following: choose the correct gain setting, adjust the sampling rate, and select the appropriate filter settings. Additionally, ensure proper signal conditioning, use a stable reference voltage, and minimize noise and interference in the system.
The recommended power-up sequence for the ADS1261BQWRHMRQ1 is to first apply the analog power supply (AVDD), followed by the digital power supply (DVDD), and finally the clock signal. This sequence helps prevent latch-up and ensures proper device operation.
The ADS1261BQWRHMRQ1 requires calibration and trimming to achieve optimal performance. TI recommends using the device's built-in calibration modes and following the calibration procedure outlined in the datasheet. Additionally, consider using external calibration resistors and capacitors to fine-tune the device's performance.
The ADS1261BQWRHMRQ1 is sensitive to temperature changes, which can affect its performance. Ensure good thermal dissipation by providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device away from heat sources. Operating the device within the recommended temperature range (–40°C to 125°C) is also crucial.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1261BQWRHMRQ1 Overview

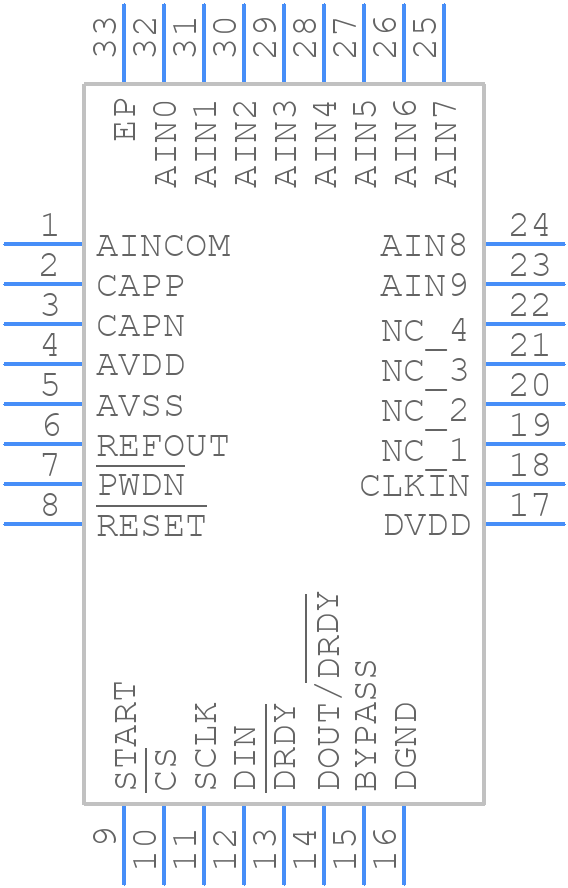

Use the download button to access the ADS1261BQWRHMRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
