The ADS1261IRHBT is a high-precision ADC, and its performance can be affected by the PCB layout and component placement. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the analog and digital grounds separate, using a solid ground plane, and placing the ADC close to the analog signal sources.
To optimize the ADS1261IRHBT's performance, consider the following: choose the correct gain setting, adjust the sampling rate, and select the appropriate filter settings. Additionally, ensure that the input signal is properly filtered and amplified, and that the reference voltage is stable and accurate.
The recommended power-up sequence for the ADS1261IRHBT is to first power up the analog supply (AVDD), followed by the digital supply (DVDD), and then the reference voltage (VREF). This sequence helps to ensure that the ADC powers up correctly and minimizes the risk of latch-up or other power-up related issues.
The ADS1261IRHBT's digital output data is available in a 24-bit or 32-bit format, depending on the mode of operation. The data can be accessed through the SPI interface, and it is recommended to use a FIFO or a buffer to handle the data stream. Additionally, consider using a CRC or checksum to ensure data integrity.
The ADS1261IRHBT is a high-precision ADC, and its performance can be affected by temperature. It is recommended to operate the device within the specified temperature range (-40°C to 85°C), and to ensure good thermal conductivity between the device and the PCB. Additionally, consider using thermal pads or heat sinks to dissipate heat.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1261IRHBT Overview

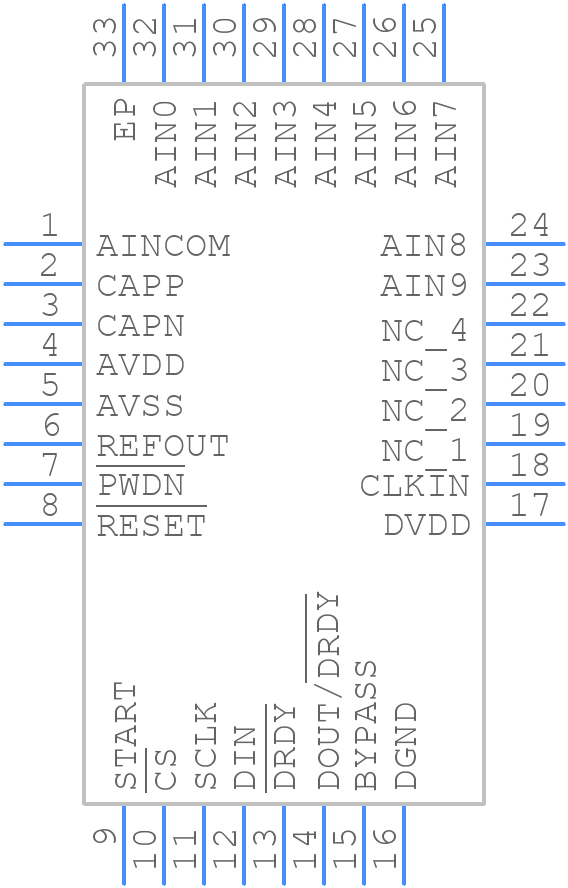

Use the download button to access the ADS1261IRHBT schematic symbol, PCB footprint, and 3D model.
