The ADS127L01IPBS requires careful layout and placement to minimize noise and ensure optimal performance. TI recommends placing the device close to the analog signal source, using a solid ground plane, and keeping analog and digital traces separate. Additionally, decoupling capacitors should be placed close to the device's power pins.
To optimize the ADS127L01IPBS's performance, consider the following: choose the correct gain setting, adjust the sampling rate, and select the appropriate digital filter. Additionally, ensure proper signal conditioning, filtering, and amplification of the analog input signal. TI provides application notes and evaluation modules to help with optimization.
The ADS127L01IPBS outputs 24-bit data in a specific format. To handle the digital output data, use a microcontroller or FPGA to receive and process the data. Ensure proper synchronization and data alignment, and consider using a FIFO or buffer to handle data bursts. TI provides example code and software development kits to facilitate data handling.
To ensure EMC and reduce EMI, follow proper PCB design and layout guidelines, use shielding and grounding techniques, and implement filtering and shielding on the analog input signals. Additionally, consider using a metal shield or enclosure for the device and ensure proper cable management.
The ADS127L01IPBS has a maximum junction temperature of 150°C. Ensure proper heat dissipation by using a heat sink or thermal pad, and avoid exposing the device to extreme temperatures. Consider the device's power consumption and thermal resistance when designing the system.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS127L01IPBS Overview

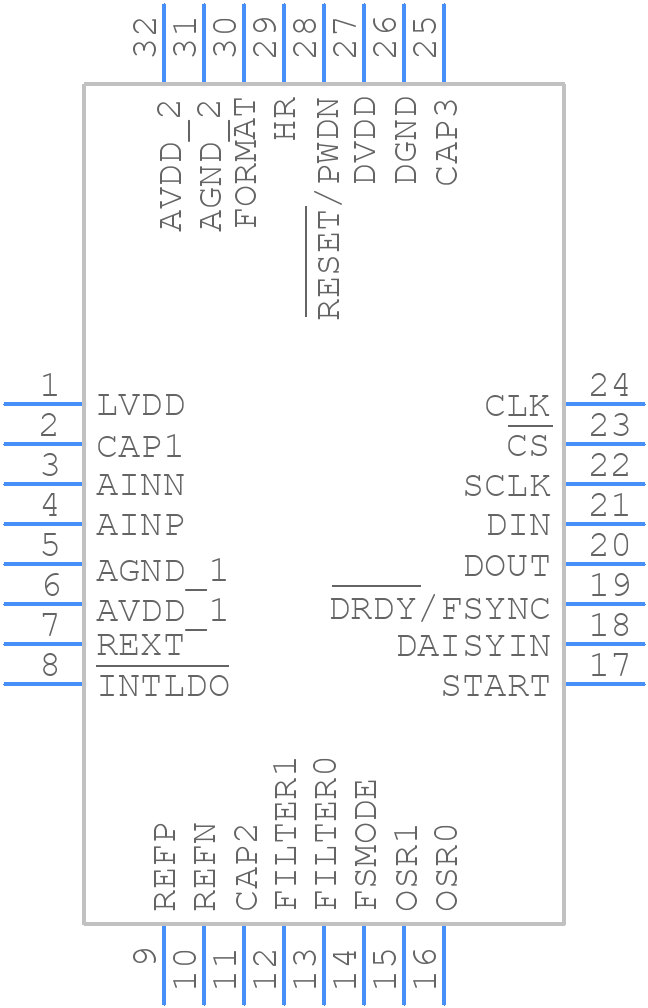

Use the download button to access the ADS127L01IPBS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
