ADS127L11IPWR - Texas Instruments

Description: Analog to Digital Converters - ADC 24-bit, 400-kSPS, delta-sigma ADC with easy-to-drive inputs and wideband or low-latency filters

Download ADS127L11IPWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

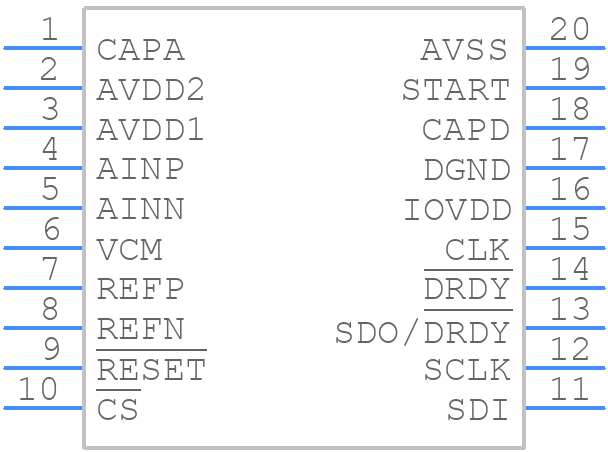

ADS127L11IPWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADS127L11IPWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW0020A
click to zoom
3D Models
ADS127L11IPWR - Texas Instruments - 3D model - Small Outline Packages - PW0020A
click to zoom

ADS127L11IPWR Details

  • Manufacturer Part Number:

    ADS127L11IPWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    5.5 V

  • Analog Input Voltage-Min:

    2.85 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    6.5 mm

  • Linearity Error-Max (EL):

    0.00055%

  • Moisture Sensitivity Level:

    2

  • Number of Analog In Channels:

    1

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2'S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    1 MHz

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    3.8 mA

  • Supply Voltage-Min:

    1.65 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

ADS127L11IPWR Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep analog and digital signals separate. Use short, direct traces for analog signals, and avoid crossing digital signals over analog signals. Also, use a common mode filter and a ferrite bead to filter out high-frequency noise.
  • Use the built-in calibration registers to adjust the gain and offset. The device has a self-calibration feature that can be triggered through the SPI interface. Additionally, use the calibration coefficients provided in the datasheet to optimize the gain and offset for your specific application.
  • Power up the device in the following sequence: AVDD, DVDD, and then the analog input voltage. Ensure that the power supplies are stable and within the recommended voltage range before applying the analog input signal.
  • Use a high-speed, low-skew clock buffer to distribute the clock signal to other devices in the system. Ensure that the clock signal is properly terminated and routed to minimize signal degradation and noise.
  • Use a common clock source and synchronize the devices using the SYNC pin. Ensure that the clock signal is properly distributed and buffered to minimize skew and jitter.
