The ADS127L11IPWT requires careful PCB layout and routing to achieve optimal performance. TI recommends following the layout guidelines in the datasheet, including keeping analog and digital traces separate, using a solid ground plane, and minimizing noise coupling.
To optimize the ADS127L11IPWT's performance, consider factors such as input signal amplitude, frequency, and impedance. Adjust the ADC's gain, filter settings, and clock frequency to match your application's requirements. Additionally, ensure proper power supply decoupling and noise filtering.
The ADS127L11IPWT outputs 24-bit data in a specific format. Ensure your microcontroller or FPGA can handle this data format and word length. Consider using a FIFO or buffer to handle data transfer and processing. Also, be mindful of data latency and synchronization requirements.
To ensure EMC, follow proper PCB design and layout practices, such as using a solid ground plane, minimizing loop areas, and using shielding and filtering as needed. Additionally, ensure the ADC is properly powered and decoupled, and consider using EMI filters or common-mode chokes.
The ADS127L11IPWT has a maximum junction temperature of 150°C. Ensure proper heat dissipation by using a heat sink or thermal pad, and avoid overheating the device. Also, consider the thermal gradient and airflow in your system design.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
ADS127L11IPWT Overview

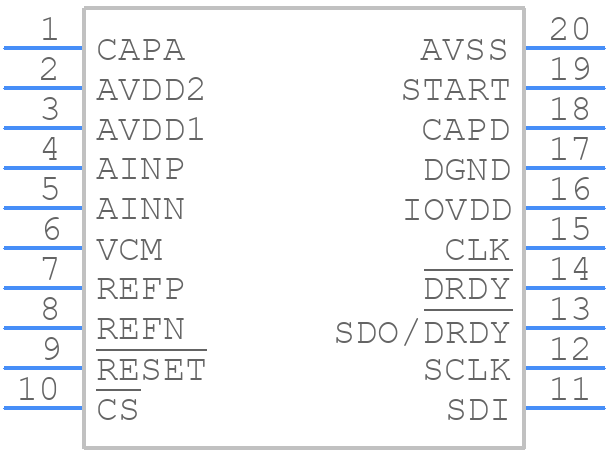

Use the download button to access the ADS127L11IPWT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
