ADS127L11IRUKR - Texas Instruments

Description: ADS127L11 400-kSPS, Wide-Bandwidth, 24-Bit, Delta-Sigma ADC

Download ADS127L11IRUKR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

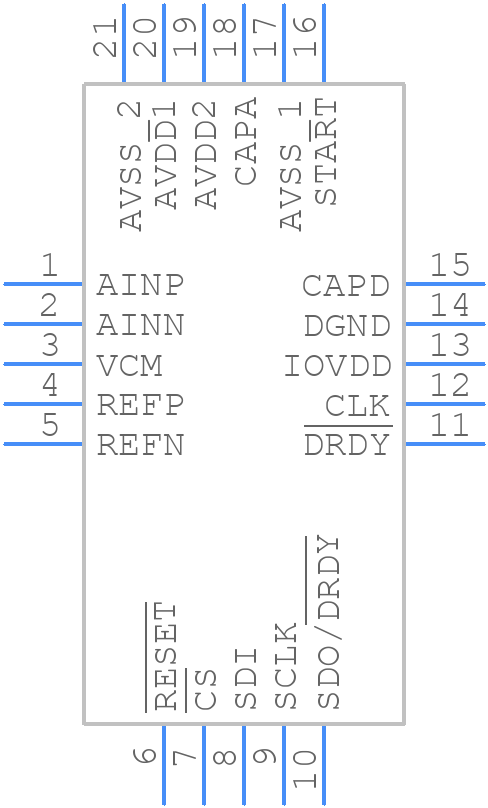

Symbol
ADS127L11IRUKR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADS127L11IRUKR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RUK0020B
click to zoom
3D Models
ADS127L11IRUKR - Texas Instruments - 3D model - Quad Flat No-Lead - RUK0020B
click to zoom

ADS127L11IRUKR Details

  • Manufacturer Part Number:

    ADS127L11IRUKR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    5.5 V

  • Analog Input Voltage-Min:

    2.85 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    S-PQCC-N20

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.00055%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2'S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.12SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    1 MHz

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    3.8 mA

  • Supply Voltage-Min:

    1.65 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

ADS127L11IRUKR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and routing guide in the ADS127L11IRUKR Evaluation Module User's Guide (SLAU445). It's essential to follow this guide to ensure optimal performance and minimize noise coupling.
  • The ADS127L11IRUKR does not require calibration. It has an internal calibration circuit that ensures accurate performance. However, it's essential to follow the recommended layout and routing guidelines to maintain accuracy.
  • The ADS127L11IRUKR can handle input voltages up to ±VREF (±2.5V or ±5V, depending on the VREF pin configuration). However, the device can tolerate overvoltage up to ±6V without damage, but accuracy may be compromised.
  • To minimize EMI and RFI, use a shielded enclosure, keep analog and digital traces separate, and use a common-mode choke or ferrite bead on the analog input lines. Additionally, ensure a solid ground plane and use decoupling capacitors on the power supply lines.
  • The POR timing is approximately 10ms, during which the device resets and initializes. After POR, the device is ready to operate and provide accurate conversions.
