The ADS1282IPW requires careful layout and placement to minimize noise and ensure optimal performance. TI recommends placing the device close to the analog signal sources, using a solid ground plane, and keeping the analog and digital traces separate. Additionally, decoupling capacitors should be placed close to the device's power pins.
To optimize the ADS1282IPW's performance, consider the following: choose the correct gain setting, adjust the sampling rate, and select the appropriate input range. Additionally, ensure proper filtering and shielding to minimize noise and interference. TI provides application notes and design guides to help with optimization.
To ensure proper operation, power up the ADS1282IPW in the following sequence: VDD, AVDD, and then DVDD. This sequence helps prevent latch-up and ensures the device's internal regulators are properly enabled.
The ADS1282IPW outputs 24-bit data in a serial format. To handle the data, use a microcontroller or FPGA to receive and process the data. Ensure proper synchronization and data formatting to avoid errors. TI provides example code and application notes to help with data handling.
The ADS1282IPW has a maximum junction temperature of 150°C. Ensure good thermal design practices, such as providing adequate heat sinking, using thermal vias, and keeping the device away from heat sources. This helps prevent overheating and ensures reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1282IPW Overview

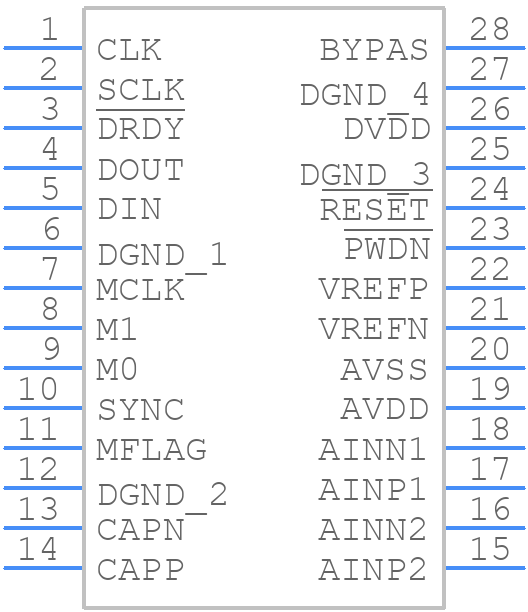

Use the download button to access the ADS1282IPW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
