ADS1282IPWG4 - Texas Instruments

Description: Analog to Digital Converters - ADC Ultra Hi Res Delta Sigma ADC

Download ADS1282IPWG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

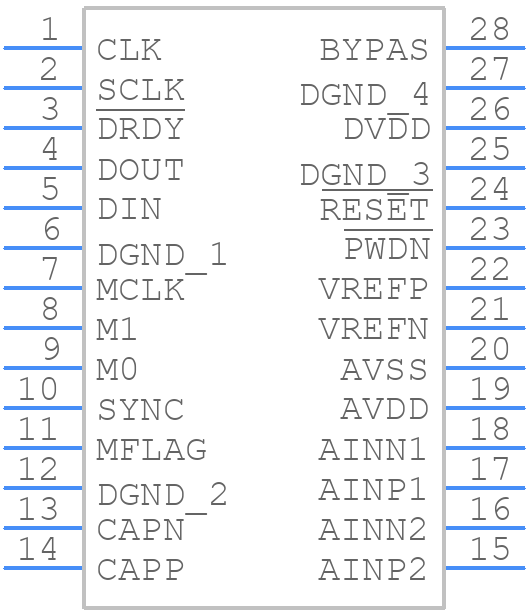

Symbol
ADS1282IPWG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADS1282IPWG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW(R-PDSO-G28)
click to zoom
3D Models
ADS1282IPWG4 - Texas Instruments - 3D model - Small Outline Packages - PW(R-PDSO-G28)
click to zoom

ADS1282IPWG4 Details

  • Manufacturer Part Number:

    ADS1282IPWG4

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    TSSOP-28

  • Pin Count:

    28

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    2.5 V

  • Analog Input Voltage-Min:

    -2.5 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    9.7 mm

  • Linearity Error-Max (EL):

    0.0004%

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -2.5 V

  • Number of Analog In Channels:

    2

  • Number of Bits:

    31

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.004 MHz

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    6.5 mA

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

ADS1282IPWG4 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and placement guide in the ADS1282 datasheet, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The ADS1282IPWG4 has a flexible AFE that can be optimized for specific applications by adjusting the gain, filter settings, and input impedance. Texas Instruments provides application notes and design tools to help engineers optimize the AFE for their specific use case.
  • The ADS1282IPWG4 can achieve a maximum sampling rate of 250 kSPS, but this may vary depending on the specific configuration and application. Engineers should consult the datasheet and application notes for more information on achieving the highest possible sampling rate.
  • Texas Instruments provides guidelines for noise reduction and interference mitigation in the ADS1282 datasheet and application notes. Engineers can also use techniques such as shielding, grounding, and filtering to minimize noise and interference in their design.
  • The ADS1282IPWG4 has a typical power consumption of 12.5 mW at 250 kSPS. Engineers can optimize power consumption by adjusting the sampling rate, using the device's low-power modes, and implementing power-saving techniques such as duty-cycling and shutdown modes.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADS1282IPWG4 Overview

Use the download button to access the ADS1282IPWG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12, or try a keyword search, such as Analog to Digital Converters
