ADS1286PK - Texas Instruments

Description: ADS1286PK, 12-Bit Analogue to Digital Converter, Differential, Serial, 8-Pin PDIP

Download ADS1286PK Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADS1286PK - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

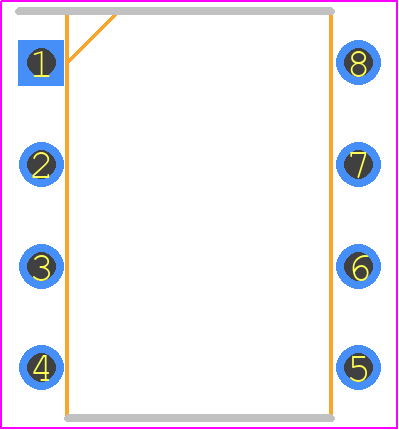

ADS1286PK - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - P (R-PDIP-T8)
click to zoom
3D Models
ADS1286PK - Texas Instruments - 3D model - Dual-In-Line Packages - P (R-PDIP-T8)
click to zoom

ADS1286PK Details

  • Manufacturer Part Number:

    ADS1286PK

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    DIP-8

  • Pin Count:

    8

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog Input Voltage-Max:

    5.3 V

  • Conversion Time-Max:

    60 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e4

  • Length:

    9.81 mm

  • Linearity Error-Max (EL):

    0.0488%

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.02 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    5.08 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

ADS1286PK Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and routing guide in the ADS1286PK evaluation module user's guide (SLAU445). It's essential to follow this guide to ensure optimal performance and minimize noise coupling.
  • TI provides an ADC performance calculator tool (ADC-PerfCalc) that helps optimize the ADC's performance based on the specific application requirements. This tool can be used to determine the optimal gain, filter settings, and other parameters for the ADS1286PK.
  • The ADS1286PK's analog inputs should be driven with a low-impedance source (e.g., an op-amp) to minimize noise and ensure accurate measurements. A buffer amplifier like the OPA189 can be used to drive the analog inputs.
  • The ADS1286PK's digital output data can be handled using a microcontroller or FPGA. TI provides example code and interface guidelines in the ADS1286PK datasheet and application notes (e.g., AN-1889).
  • The ADS1286PK's noise floor is typically around 100 nV/√Hz. To minimize noise, use a low-noise power supply, keep the analog input signals away from digital signals, and use proper PCB layout and shielding techniques.
