The ADS1291IPBS is a high-impedance device, so it's essential to keep the analog signal traces short and away from digital signal traces. Place the device close to the electrodes, and use a ground plane to minimize noise. Refer to the TI application note 'PCB Layout Guidelines for ADS129x' for more information.
The ADS1291IPBS has a programmable gain amplifier (PGA) that allows you to adjust the gain from 1 to 12. To optimize the gain, start with a low gain setting and gradually increase it until you reach the desired signal-to-noise ratio (SNR). You can use the device's internal calibration signal to help you determine the optimal gain setting.
The ADS1291IPBS has a built-in digital filter that can be configured to remove noise and interference. You can also use external filters, such as a notch filter to remove power line noise or a low-pass filter to remove high-frequency noise. Additionally, consider using shielding and grounding techniques to minimize electromagnetic interference (EMI).
To ensure accuracy and reliability, calibrate the ADS1291IPBS regularly using the device's internal calibration signal. Also, use a high-quality electrode and ensure good skin contact. Implement a robust algorithm to detect and correct for artifacts, such as motion artifacts or electrode noise. Finally, consider using a redundant system or backup power source to ensure continuous operation.
The ADS1291IPBS has a typical power consumption of 3.3 mA at 3.3 V. To minimize power consumption, use the device's low-power mode, which reduces power consumption to 1.1 mA. You can also use the device's shutdown mode to further reduce power consumption when not in use.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1291IPBS Overview

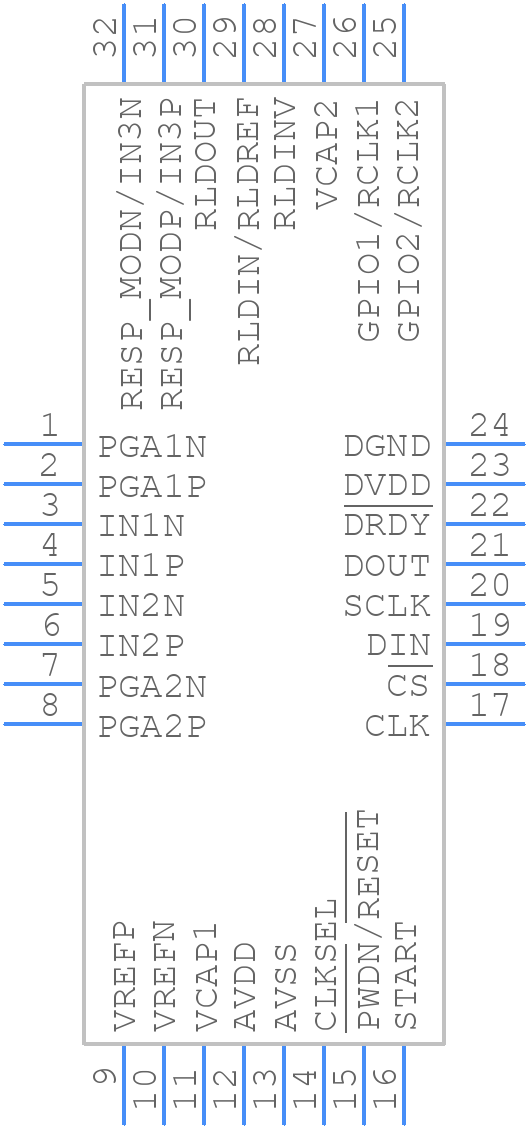

Use the download button to access the ADS1291IPBS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
