Texas Instruments provides a layout guide and PCB design recommendations in the ADS131M03IPWR datasheet and application notes. It's essential to follow these guidelines to minimize noise and ensure optimal performance. Additionally, using a 4-layer PCB with a dedicated analog ground plane and separating analog and digital signals can help reduce noise and interference.
The ADS131M03IPWR has an internal calibration mechanism, but it's recommended to perform an external calibration to achieve the best possible accuracy. This can be done by applying a known input voltage and adjusting the gain and offset registers to match the expected output. Texas Instruments provides calibration procedures and examples in the datasheet and application notes.
The ADS131M03IPWR has a maximum input voltage range of ±VREF (typically ±2.5V). To handle overvoltage protection, it's recommended to use external voltage limiting resistors and diodes to clamp the input voltage to within the specified range. Additionally, the device has an internal overvoltage protection circuit that can detect and respond to overvoltage conditions.
To optimize power consumption, it's recommended to use the lowest possible clock frequency, reduce the number of active channels, and use the power-down mode when not in use. Additionally, the device has a low-power mode that can be enabled to reduce power consumption. Texas Instruments provides power consumption estimates and optimization guidelines in the datasheet and application notes.
The recommended clock frequency for the ADS131M03IPWR is between 2 MHz and 4 MHz. The clock frequency affects the device's performance, including the conversion rate, noise, and power consumption. A higher clock frequency can provide faster conversion rates but may also increase noise and power consumption. Texas Instruments provides guidelines for selecting the optimal clock frequency based on the specific application requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS131M03IPWR Overview

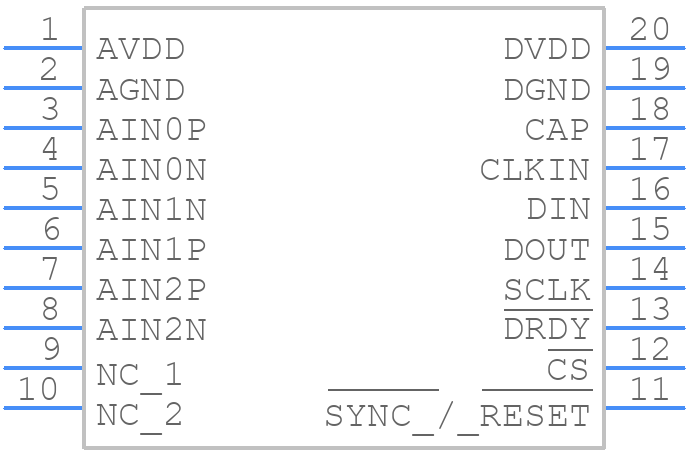

Use the download button to access the ADS131M03IPWR schematic symbol, PCB footprint, and 3D model.
